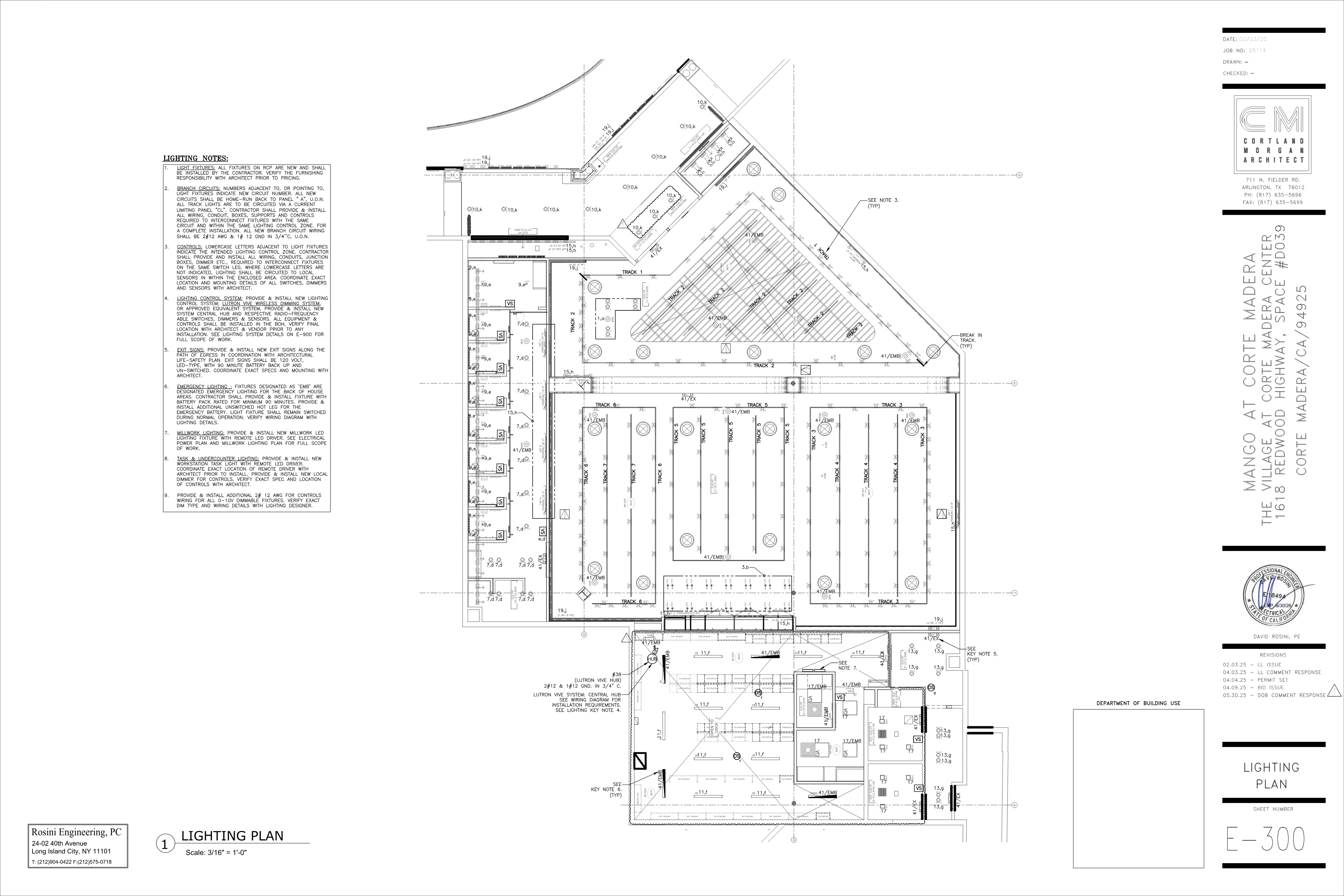

E-300 — LIGHTING PLAN

Fixture counts from the fixture-type text labels; tags drawn as outlines; exits, EMB, sensors hand-placed from the page image.

Names come from: no legend on this sheet, so NECA 100-2006 is what a name rests on. It is the baseline for what a symbol MEANS, never for matching shapes — proportions differ per firm. Confirming a name here is a correction, and corrections are what build the firm's file.

Scale is 3/16" = 1'-0" — 13.5 points per foot. Read off the title block, so measurement off this sheet is available. A later correction flags any measurement taken under the old scale as stale rather than silently recomputing it.

acting aslookadd a markstrike a markPut your name in to mark this sheet up. Looking needs no name.

zoom−100%+fit2×3×sheetonoffcountsonoff360 of 360 marks drawn

Page 3 of Copy of 2498 E set 2025-0530 Revision 1.pdf, recorded by the read.

Fetching page 3…

20 changes on this sheet, each saved as it was made · ✓ confirmed by kelchlin Sep 29, 6:24 PMReopen sheetSaveSave & next: E-400 →

History on this sheet (21)

• Sep 29, 6:24 PM · kelchlin saved the sheet
• Sep 29, 6:23 PM · kelchlin settled a footage — “L-0116 = 631 ft”
• Sep 29, 6:23 PM · kelchlin settled a footage — “L-0115 = 1666 ft”
• Sep 29, 6:23 PM · kelchlin settled a footage — “L-0111 = 1292 ft”
• Sep 29, 6:22 PM · kelchlin settled a footage — “L-0052 = 5573 ft”
• Sep 29, 6:22 PM · kelchlin settled a footage — “L-0051 = 8725.7 ft”
• Sep 29, 6:22 PM · kelchlin settled a footage — “L-0050 = 2653.8 ft”
• Sep 29, 6:22 PM · kelchlin settled a footage — “L-0046 = 45 ft”
• Sep 29, 6:22 PM · kelchlin settled a footage — “L-0045 = 15 ft”
• Sep 29, 6:22 PM · kelchlin settled a footage — “L-0041 = 60 ft”
• Sep 29, 6:22 PM · kelchlin settled a footage — “L-0040 = 648 ft”
• Sep 29, 6:22 PM · kelchlin settled a footage — “L-0038 = 125.3 ft”
• Sep 29, 6:22 PM · kelchlin settled a footage — “L-0037 = 153.8 ft”
• Sep 29, 6:22 PM · kelchlin added a suggested line — “L-0118: MC CONNECTORS × 390”
• Sep 29, 6:21 PM · kelchlin added a suggested line — “L-0117: EMT STRAPS BEYOND THE CATALOGUE SPACING × 743”
• Sep 29, 6:21 PM · kelchlin added a suggested line — “L-0116: MC LUMINARY CABLE 12/3 TO FIXTURES × 631”
• Sep 29, 6:21 PM · kelchlin added a suggested line — “L-0115: MC LUMINARY CABLE 16-2 TO FIXTURES × 1666”
• Sep 29, 6:21 PM · kelchlin added a suggested line — “L-0114: TENMAT FIRE-RATED COVER OVER RECESSED DOWNLIGHT × 51”
• Sep 29, 6:21 PM · kelchlin added a suggested line — “L-0113: 3/8" BEAM CLAMP AT EACH ROD DROP × 143”
• Sep 29, 6:20 PM · kelchlin added a suggested line — “L-0112: 3/8" ALL THREAD ROD DROPS FOR TRACK STRUT × 143”
• Sep 29, 6:20 PM · kelchlin added a suggested line — “L-0111: UNISTRUT FOR TRACK SUPPORT × 1292”

▸ Answered on this sheet9

Footage0 need you · 12 read by the reader

Nothing here needs you: every run has a length the reader measured or read off the drawing.

Show the 12 the reader gave a length (to check or change)

By symbol19 of 19 shown

showing everything foundshowing named only

360

all marks

hover a group to filter the plan

Counted here, not marked on the drawing

The takeoff counted these from this sheet (circuit labels, the panel schedule) without placing a mark. Marks for drawn symbols come with the symbol-counting step.

648 × TRACK SECTION, 8 FT, 120V single-circuit (81 pieces)60 × TRACK SECTION, 4 FT, 120V single-circuit (15 pieces)45 × WIRE, THHN CU #12 - Lutron hub circuit A-38 (2#12 + 1#12G)8725.7 × WIRE, THHN CU #12 - lighting branch (2#12 & 1#12G per circuit, modelled)5573 × WIRE, #12 CU (THHN/MTW) - 0-10V dimming control pair, 2 conductors in lighting branch conduit (lighting note 9)

115

P15.1W · track head

text tag on plan

takeoff: LIGHT FIXTURE TYPE P15.1W (schedule P15.1w) - track head

95

P08.1W · track head fixture

text tag on plan

takeoff: LIGHT FIXTURE TYPE P08.1W (schedule P08.1w) - track head

29

TRACK · track runs (tracks 1-7)

text tag on plan

takeoff: TRACK, LINE-VOLTAGE 120V SINGLE-CIRCUIT, SURFACE/SUSPENDED (tracks 1-7)

25

E12.1W · recessed fixture

text tag on plan

takeoff: LIGHT FIXTURE TYPE E12.1W (schedule E12.1w) - recessed

18

41/EMB · EM battery-pack fixture

text tag on plan

takeoff: EMERGENCY BATTERY PACK, 90-MIN, FIELD-INSTALLED IN FIXTURE (tag /EMB, lighting note 6)

11

E10.1W · recessed fixture

text tag on plan

takeoff: LIGHT FIXTURE TYPE E10.1W (schedule E10.1w (E-900 tag; not on E-800 Table F)) - recessed

11

LAF · LED strip runs

text tag on plan

takeoff: LIGHT FIXTURE TYPE LAF (schedule LAF) - LED strip / millwork linear, remote driver

9

E05W · recessed fixture

text tag on plan

takeoff: LIGHT FIXTURE TYPE E05W (schedule E05w) - recessed

8

LAL · LED strip runs

text tag on plan

takeoff: LIGHT FIXTURE TYPE LAL (schedule LAL) - LED strip / millwork linear, remote driver

8

SA · fitting-room sensor accessory

text tag on plan

takeoff: LUTRON WIRELESS SENSOR/ACCESSORY ('SA' symbol, fitting rooms) - install only

7

41/EX · exit sign

text tag on plan

takeoff: EXIT SIGN, LED, 120V, 90-MIN BATTERY (schedule EX01/EX02, E-200 EM2/EM4)

6

E11.1W · recessed fixture

text tag on plan

takeoff: LIGHT FIXTURE TYPE E11.1W (schedule E11.1w) - recessed

4

P01W · window-display fixture fixture

text tag on plan

takeoff: LIGHT FIXTURE TYPE P01W (schedule P01w (E-900)) - window-display fixture

4

P02W · window-display fixture fixture

text tag on plan

takeoff: LIGHT FIXTURE TYPE P02W (schedule P02w (E-900)) - window-display fixture

4

VS · Pico wall control

text tag on plan

takeoff: LUTRON PICO WIRELESS DIMMER/SWITCH ('VS' symbol) - install on wall box/mount, vendor furnished

3

OS · wireless occupancy sensor

text tag on plan

takeoff: LUTRON VIVE WIRELESS OCCUPANCY SENSOR, CEILING (OS symbol) - install only, vendor furnished

1

HUB · Lutron Vive hub J-box

text tag on plan

takeoff: JUNCTION BOX, 4" SQ, CEILING, FOR LUTRON VIVE HUB HJS-1 (A-38, 2#12 & 1#12G in 3/4"C)

1

HUB · A-38 conduit

text tag on plan

takeoff: CONDUIT, EMT 3/4" - Lutron hub circuit A-38

1

A · lighting branch (modelled)

text tag on plan

takeoff: CONDUIT, EMT 3/4" - lighting branch homeruns and fixture chain (modelled)
