Read from the text layer in 80 ms: 1,017 characters across 97 laid-out runs, tier 2. Marks below are TEXT labels at their own positions, not a geometry sweep — on a tier-1 set text tag counts beat a visual sweep, and a mark read off a label arrives named rather than as a shape nobody can identify. No scale callout was found, so the scale is UNSET and nothing here has been measured. The reader declines to infer a scale rather than guess one. No schedule was found on this sheet, so the whole plan area was swept.
Names come from: this sheet's own legend. The title block types this sheet as the legend sheet.
Scale is UNSET. Nothing on this sheet has been measured. The reader declined to infer a scale rather than guess one, so there is no raceway and no branch wire off this sheet — together the largest block of material on a job of this kind. Set it from the title block and measurement becomes available.
No marks on this sheet. The full read placed nothing here; the only labels it had were from the quick preview (letters in the title block), and they are not findings.
Put your name in to mark this sheet up. Looking needs no name.
zoom100%sheetcounts0 of 14 marks drawn
overlay

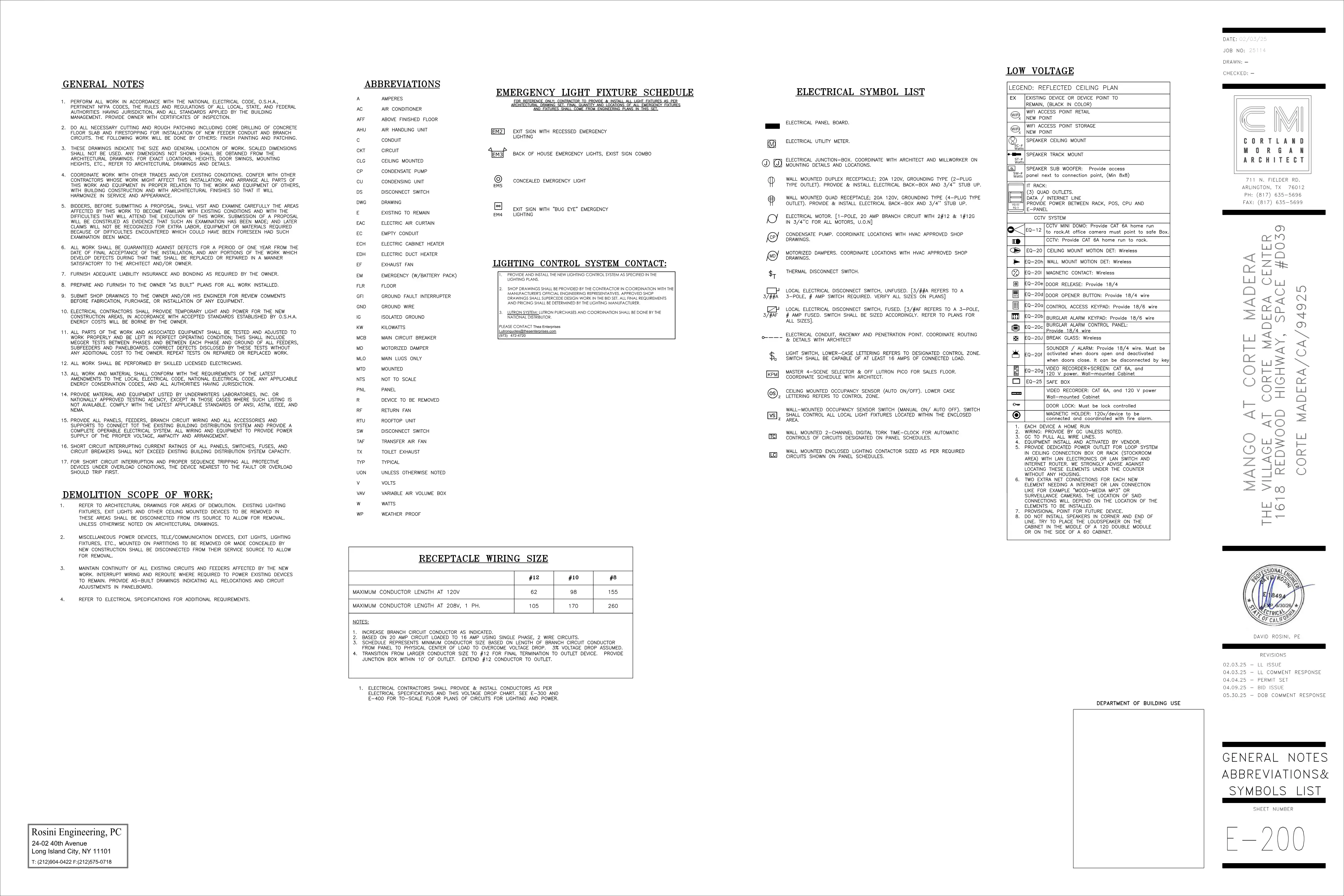

Page 2 of Copy of 2498 E set 2025-0530 Revision 1.pdf, recorded by the read.
