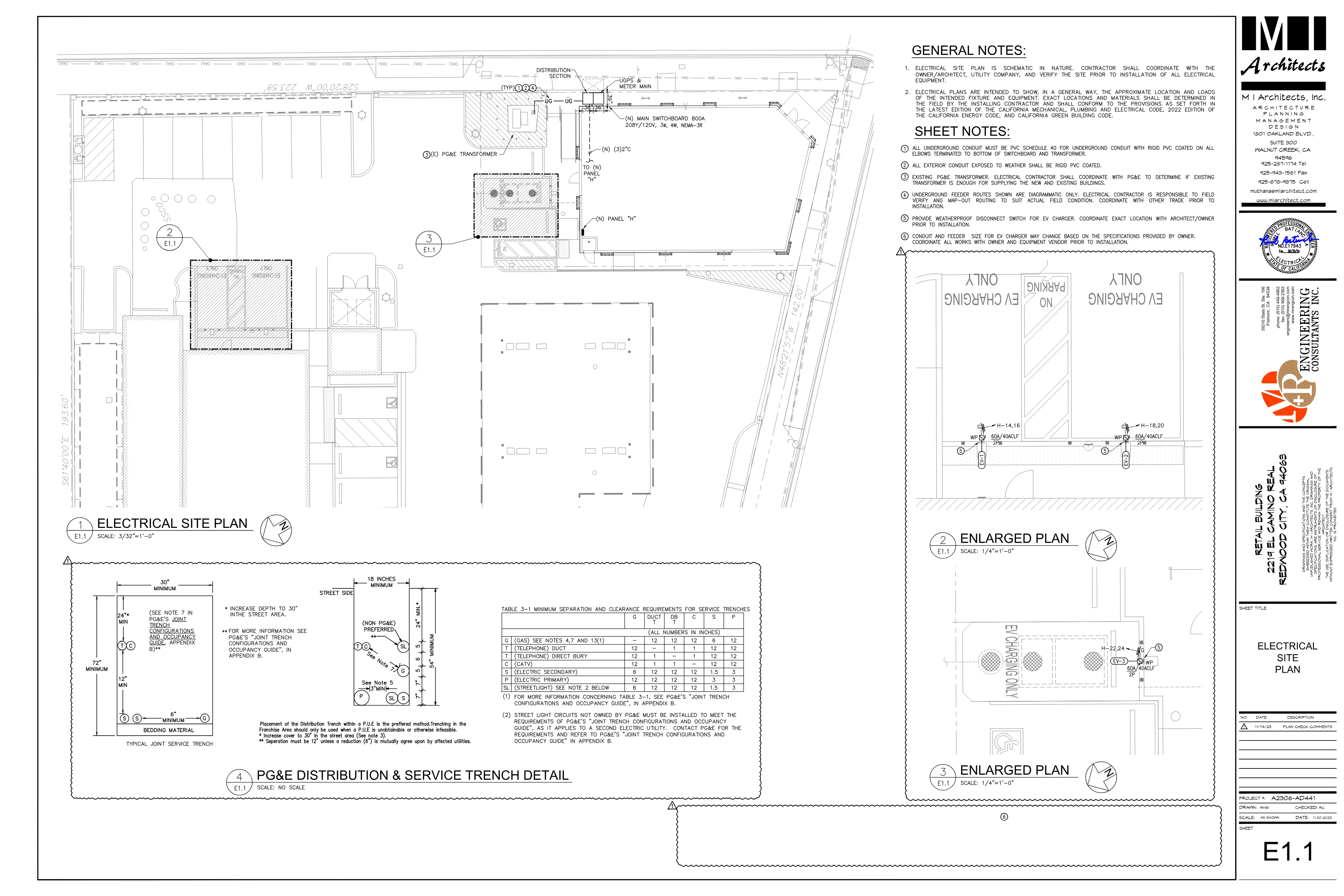

E1.1 — ELECTRICAL SITE PLAN

Lettering is drawn as outlines (no text layer); read from the page image. Scanner groups were text glyphs, hatching and linework; equipment located by eye.

Names come from: no legend on this sheet, so NECA 100-2006 is what a name rests on. It is the baseline for what a symbol MEANS, never for matching shapes — proportions differ per firm. Confirming a name here is a correction, and corrections are what build the firm's file.

Scale is 3/32"=1'-0" — 6.75 points per foot. Read off the title block, so measurement off this sheet is available. A later correction flags any measurement taken under the old scale as stale rather than silently recomputing it.

acting aslookadd a markstrike a markPut your name in to mark this sheet up. Looking needs no name.

zoom−100%+fit2×3×sheetonoffcountsonoff11 of 11 marks drawn

Page 54 of Copy of Drawings.pdf, recorded by the read.

Fetching page 54…

0 changes on this sheet, each saved as it was made · not saved as reviewed yetSaveSave & next: E4.0 →

▸ Answered on this sheet1

Footage4 need you · 0 read by the reader

Put your name in above to answer these.

0Is this footage right?

1" PVC SCH 40 CONDUIT UNDERGROUND

EV-1, EV-2, EV-3 feeders from panel H, 1"C each (E1.1 equipment schedule)

The reader measured 114.5 ft along the dashed path (raw, before waste); the line carries 0 ft.

ftSave

Measure it on the drawing · Strike it: not in this job · counted on another line

0Is this footage right?

#6 THHN/THWN-2 CU

EV-1 and EV-2 feeder conductors, (2)#6 each

Wire is its conduit times the conductors in it, so it is not measured on the drawing. Check the conduit line.

ftSave

Measure it on the drawing · Strike it: not in this job · counted on another line

0Is this footage right?

#8 THHN/THWN-2 CU

EV-3 feeder conductors, (2)#8

Wire is its conduit times the conductors in it, so it is not measured on the drawing. Check the conduit line.

ftSave

Measure it on the drawing · Strike it: not in this job · counted on another line

0Is this footage right?

#10 THHN/THWN-2 CU GROUND

EV feeder equipment grounds, (1)#10 each

Wire is its conduit times the conductors in it, so it is not measured on the drawing. Check the conduit line.

ftSave

Measure it on the drawing · Strike it: not in this job · counted on another line

By symbol4 of 4 shown

showing everything foundshowing named only

11

all marks

hover a group to filter the plan

Counted here, not marked on the drawing

The takeoff counted these from this sheet (circuit labels, the panel schedule) without placing a mark. Marks for drawn symbols come with the symbol-counting step.

3 × DISCONNECT SWITCH 60A 2P FUSED NEMA 3R 240V (EV-1, EV-2, EV-3 EVSE)6 × FUSE 40A CLASS RK5 CURRENT LIMITING (EV DISCONNECTS)3 × LIQUIDTIGHT FLEXIBLE METAL CONDUIT WHIP 1" WITH CONNECTORS (EVSE CONNECTION)3 × EQUIPMENT CONNECTION EVSE 208V 1PH 30A (CHARGEPOINT CT4011-GW1)0 × FUSE 40A 250V CURRENT-LIMITING CLASS RK1/J3 × JUNCTION BOX WEATHERPROOF AT EV CHARGER (HARD-WIRED EQUIPMENT CONNECTION)0 × 1" PVC SCH 40 CONDUIT UNDERGROUND21 × 1" RGS PVC-COATED ELBOW / RISER0 × #6 THHN/THWN-2 CU0 × #8 THHN/THWN-2 CU0 × #10 THHN/THWN-2 CU GROUND12 × 5" RGS PVC-COATED ELBOW

4

E1.1 · PG&E service conduit elbows

read from page image

takeoff: 5" PVC SCH 40 CONDUIT UNDERGROUND - PG&E SERVICE SECONDARY

3

E1.1 · WP fused disconnect 60A/40ACLF 2P at EV

read from page image

takeoff: DISCONNECT SWITCH 60A 2P 240V FUSIBLE NEMA 3R (WP), 40A CLF FUSES

3

E1.1 · EV charger ChargePoint CT4011

read from page image

takeoff: EV CHARGER CONNECTION - CHARGEPOINT CT4011-GW1 EVSE 208V 1PH 30A (OFCI, EC INSTALL & CONNECT)

1

E1.1 · (N) main switchboard 800A

read from page image

takeoff: MAIN SWITCHBOARD 800A 208Y/120V 3PH 4W NEMA 3R 65KAIC, 800A 3P 100% MAIN, UTILITY METERING
