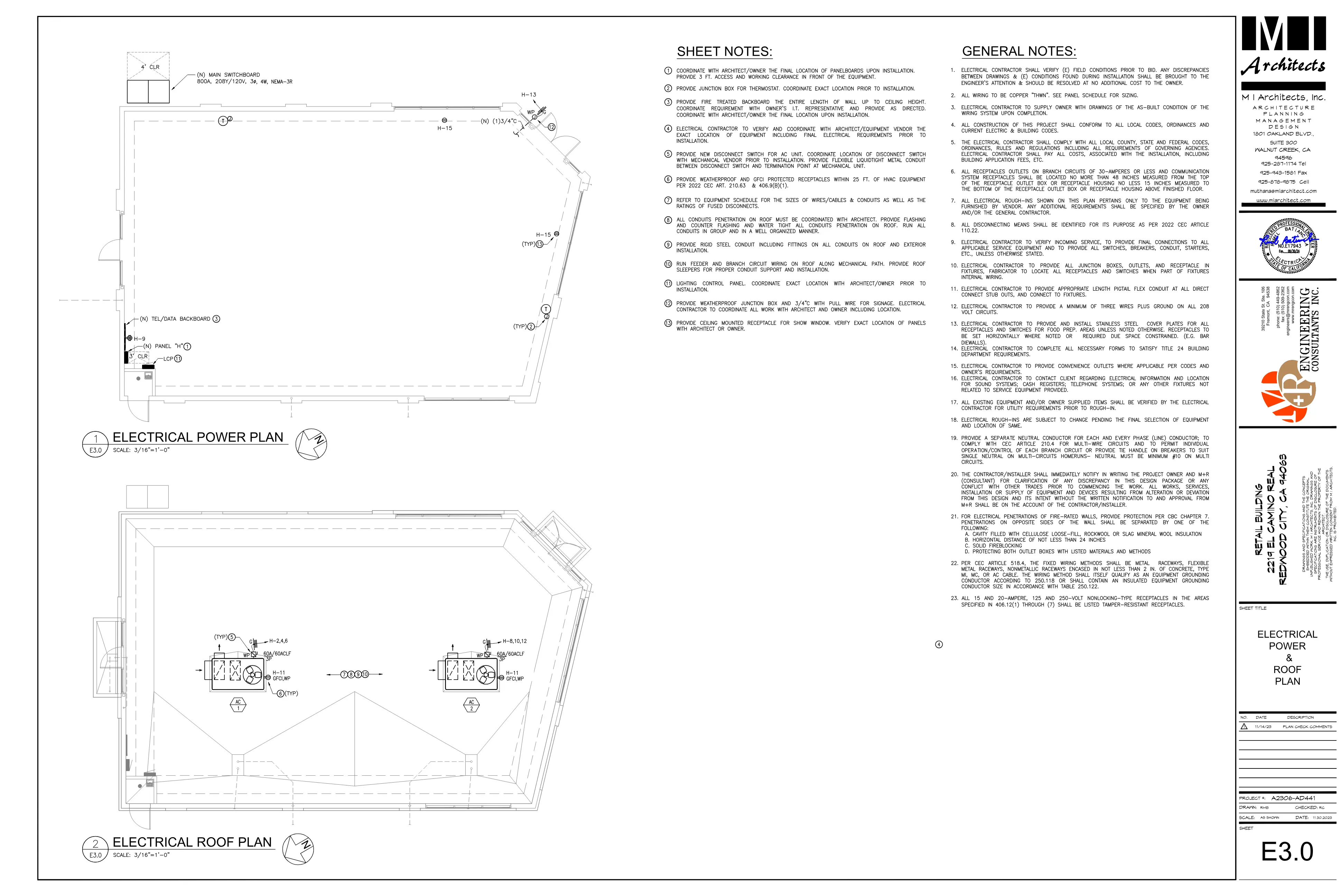

Power plan (1) and roof plan (2), both 3/16"=1'-0". Lettering is outlined; devices named by looking at the page image; symbol scan groups are mostly lettering.
Names come from: no legend on this sheet, so NECA 100-2006 is what a name rests on. It is the baseline for what a symbol MEANS, never for matching shapes — proportions differ per firm. Confirming a name here is a correction, and corrections are what build the firm's file.
Scale is 3/16"=1'-0" — 13.5 points per foot. Read off the title block, so measurement off this sheet is available. A later correction flags any measurement taken under the old scale as stale rather than silently recomputing it.
13.5 pt/ft
Put your name in to mark this sheet up. Looking needs no name.
zoom100%sheetcounts13 of 13 marks drawn
Page 59 of Copy of Drawings.pdf, recorded by the read.
Fetching page 59…
0 changes on this sheet, each saved as it was made · ✓ confirmed by Adam Kelchlin Oct 5, 7:16 PM
History on this sheet (1)
Oct 5, 7:16 PM · Adam Kelchlin saved the sheet
Price from RRE Components3 on this sheet
Pick the RRE item for each count. The Draft Estimate opens when every sheet is answered. Put your name in above to answer these.
No RRE Components assembly is a close match. Search the catalogue for one.
Ringed yellow with “$” on the drawing.
Recommended — RRE buys a backboard as one 4’x8’ plywood sheet at $66 and 2.3 hr (its last retail, restaurant and store jobs). Recommended: RRE-PLYWOOD, one per board drawn. One answer here prices every line in this question.
4'X8' PLYWOOD BACKBOARD (fire-rated, painted)recommendedRRE-PLYWOOD · $66.00 material · 2.30 hr each
None of these right?
Feeder wire by the foot — 3/4" RGS CONDUIT WITH PULL WIRE, SIGNAGE STUB
No RRE Components assembly is a close match. Search the catalogue for one.
Ringed purple with “$” on the drawing.
Recommended: not in this bid — Wire measured in feet with no size on the line. Choose the THHN pull-only item by size -- never an hour item, which would price each foot as an hour.
recommended
None of these right?
46A fused disconnect — EQUIPMENT CONNECTION, RTU 208V 3PH 46A - 1" LIQUIDTIGHT FLEX (24" MIN) DISCONNECT TO UNIT WITH FITTINGS
No RRE Components assembly is a close match. Search the catalogue for one.
Nothing to highlight: not marked on the drawing. Counted from this sheet’s labels or schedule.
Recommended: not in this bid — RRE’s last retail job: 4 × 60A 250V HD 3PH N3R fused switches at the rooftop units, and a 30A GD N3R non-fused. This one reads 46A 3PH N1 fused, so the 250V HD N1 switch.
recommended
None of these right?
Lines RRE adds for this sheet1 to answer
RRE carries these on jobs like this one, and no symbol on the drawing counts them. Add each with a count, or answer “not in this bid”. The Draft Estimate opens when every one is answered. Put your name in above to answer these.
EMT STRAPS BEYOND THE CATALOGUE SPACING
The 1-hole straps RRE adds to branch EMT: the EMT item carries one per 8 ft; RRE straps every 3-4 ft.
Recommended — RRE priced this on 5 of 5 past jobs (100%). RRE’s last restaurant job: 805 straps on 3,183 ft of 3/4" EMT (one per 4 ft); its last retail job 764 on 2,142 ft (one per 2.8 ft). The EMT item carries one per 8 ft, so 0.18 a foot more. Recommended: RRE-EMT-STRAP at 0.03 hr each.
Estimated from RRE’s ratio, not measured. Change it if you measured; the line records which.
How to count: About 40 for this job's 224 ft of branch EMT.
Footage0 need you · 11 read by the reader
Nothing here needs you: every run has a length the reader measured or read off the drawing.
By symbol9 of 9 shown
13
all marks
hover a group to filter the plan
Counted here, not marked on the drawing
The takeoff counted these from this sheet (circuit labels, the panel schedule) without placing a mark. Marks for drawn symbols come with the symbol-counting step.
