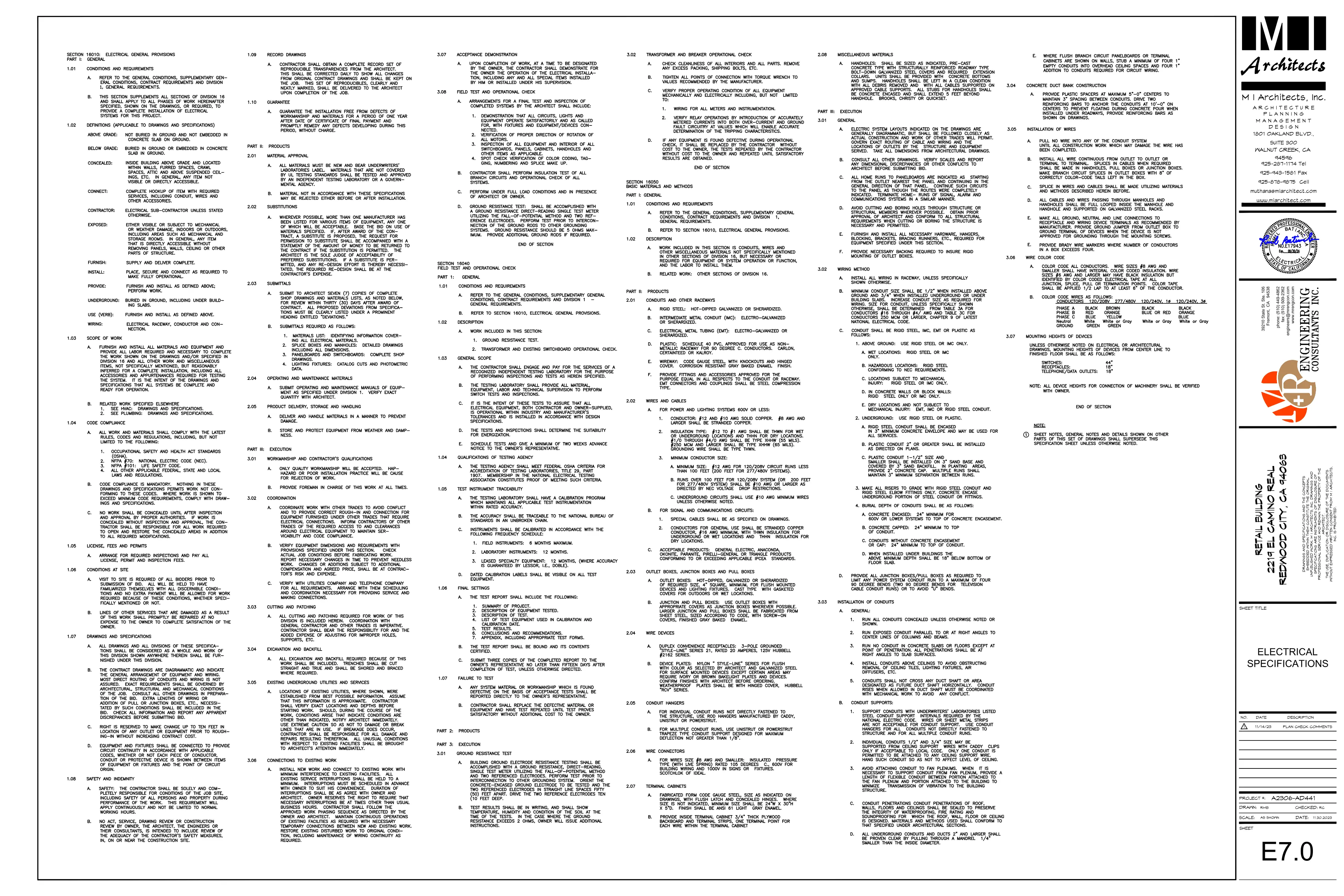

Specification text sheet (16010/16040/16050); no plan drawn. 3 lines from spec clauses (two tests, conduit support layer); box sweep all zero.
Names come from: no legend on this sheet, so NECA 100-2006 is what a name rests on. It is the baseline for what a symbol MEANS, never for matching shapes — proportions differ per firm. Confirming a name here is a correction, and corrections are what build the firm's file.
Scale is UNSET. Nothing on this sheet has been measured. The reader declined to infer a scale rather than guess one, so there is no raceway and no branch wire off this sheet — together the largest block of material on a job of this kind. Set it from the title block and measurement becomes available.
Put your name in to mark this sheet up. Looking needs no name.
zoom100%sheetcounts3 of 3 marks drawn
Page 63 of Copy of Drawings.pdf, recorded by the read.
Fetching page 63…
0 changes on this sheet, each saved as it was made · ✓ confirmed by Adam Kelchlin Oct 5, 7:17 PM
History on this sheet (1)
Oct 5, 7:17 PM · Adam Kelchlin saved the sheet
Price from RRE Components2 on this sheet
Pick the RRE item for each count. The Draft Estimate opens when every sheet is answered. Put your name in above to answer these.
Circuit breaker (terminations counted) — SWITCHBOARD AND BREAKER OPERATIONAL CHECK AND TORQUE TEST (MSB 800A AND PANEL H), BY INDEPENDENT TESTING LABORATORY
No RRE Components assembly is a close match. Search the catalogue for one.
Ringed yellow with “$” on the drawing.
Recommended: not in this bid — The terminations line on this takeoff already counts these circuits, and RRE’s last retail job bought no breakers for circuits in its existing panels. Recommended: Not in this bid. Where the EC furnishes new breakers, search for the breaker. One answer here prices every line in this question.
Also answers 6 lines of this kind on other sheets: CIRCUIT BREAKER 200A 3P IN SWITCHBOARD MSB (FEEDER TO PANEL H) · CIRCUIT BREAKER 20A 1P BOLT-ON (PANEL H) · CIRCUIT BREAKER 30A 3P BOLT-ON (PANEL H, AC-1) · CIRCUIT BREAKER 50A 3P BOLT-ON (PANEL H, AC-2) …
recommended
None of these right?
Rod drop — CONDUIT SUPPORT SYSTEM - ROD HANGERS / UNISTRUT TRAPEZE WITH CLAMPS AND ALL-THREAD (SPEC 16050 2.05), PER BOX POINT
No RRE Components assembly is a close match. Search the catalogue for one.
Ringed purple with “$” on the drawing.
Recommended — RRE’s last retail job: 140 rod drops of 3 ft 3/8" all-thread under the track strut, RRE’s own item. Recommended: 3/8" ALL THREAD ROD DROP, one per drop.
3/8" ALL THREAD ROD DROP, 3 FT W/ WASHERS (per drop)recommendedRRE-ROD-DROP · $7.50 material · 0.04 hr each
