Read from the text layer in 57 ms: 9,312 characters across 1,294 laid-out runs, tier 1. Marks below are TEXT labels at their own positions, not a geometry sweep — on a tier-1 set text tag counts beat a visual sweep, and a mark read off a label arrives named rather than as a shape nobody can identify. No scale callout was found, so the scale is UNSET and nothing here has been measured. The reader declines to infer a scale rather than guess one. No schedule was found on this sheet, so the whole plan area was swept.
Names come from: no legend on this sheet, so NECA 100-2006 is what a name rests on. It is the baseline for what a symbol MEANS, never for matching shapes — proportions differ per firm. Confirming a name here is a correction, and corrections are what build the firm's file.
Scale is UNSET. Nothing on this sheet has been measured. The reader declined to infer a scale rather than guess one, so there is no raceway and no branch wire off this sheet — together the largest block of material on a job of this kind. Set it from the title block and measurement becomes available.
Put your name in to mark this sheet up. Looking needs no name.
zoom100%sheetcounts153 of 153 marks drawn

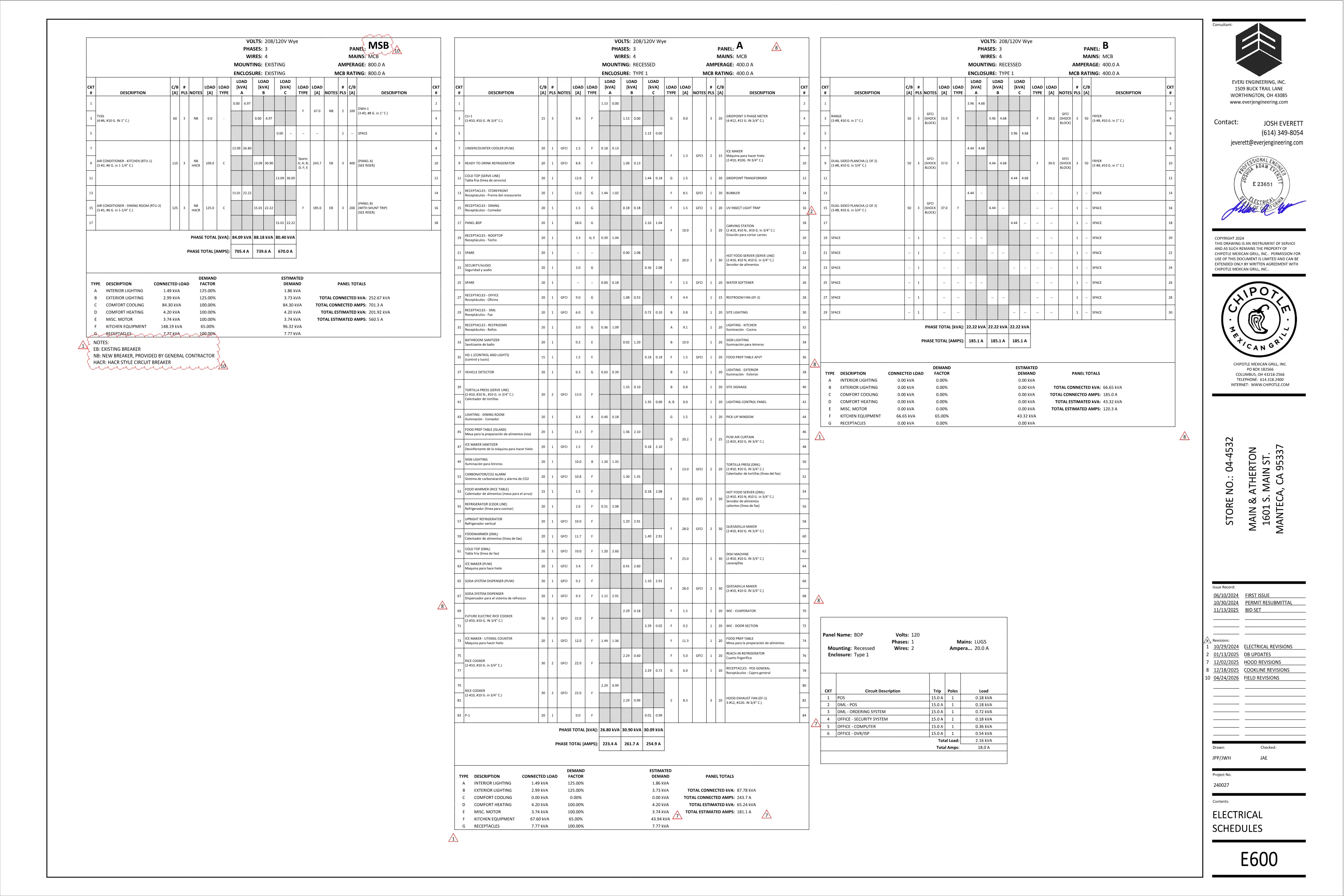

Page 3 of 04-4532-field-revisions-rev10-2026-04-24.pdf, located by title block, confirmed by the page the read recorded.
Fetching page 3…
0 changes on this sheet, each saved as it was made · not saved as reviewed yet
Lines RRE adds for this sheet3 to answer
RRE carries these on jobs like this one, and no symbol on the drawing counts them. Add each with a count, or answer “not in this bid”. The Draft Estimate opens when every one is answered. Put your name in above to answer these.
20A 2 WIRE TERMINATION
One termination per new or modified 20A single-pole circuit on the panel schedule.
Recommended — RRE priced this on 5 of 5 past jobs (100%). RRE’s last retail job: 47 × 20A 2-wire terminations ticked off the panel schedule (plus 20A/50A/60A 3-wire for the multi-pole circuits). RRE’s last restaurant job: 49 × 20A 1P at 0.26 hr. Recommended: RRE Components 10725, 20A 2 WIRE TERMINATION.
How to count: Count every 20A single-pole circuit on the panel schedule(s) that this job adds or changes.
RRE PER-JOB KIT
The allowance RRE carries on every job: 20 5/8" anchors with all-thread, nuts and washers, sealant, five screw-cover boxes, channel cuts, pull tape and a $50 device allowance.
Recommended — RRE priced this on 4 of 5 past jobs (80%). RRE carried these items at identical quantities on each of its last three jobs -- a fixed allowance, not a count (11.5 hr, $582). Recommended: RRE-HOUSE-KIT, once per job.
276 tan wire nuts, 92 insulated pigtails, 184 anti-short bushings with their screws, a 4x8 plywood backboard and 1" PVC fittings.
Recommended — RRE priced this on 4 of 5 past jobs (80%). RRE carried these at exactly these quantities on its two larger jobs (22.0 hr, $150), and about an eighth of them, with no backboard, on its smallest. Recommended: RRE-HOUSE-KIT-LOOSE on a job of restaurant or larger-retail size; leave it off a small fit-out.
eaRRE-HOUSE-KIT-LOOSE · RRE PER-JOB LOOSE PARTS (wire nuts, pigtails, bushings, backboard, PVC fittings) · 21.96 hr each
The reader could not settle these4
Put your name in above to answer these.
5What is this symbol?
text label · 7.1 pt · mounting height
The reader thinks mounting height but is not sure. Hover to see where they are on the drawing.
4What is this symbol?
text label · 7.1 pt · homerun callout
The reader thinks homerun callout but is not sure. Hover to see where they are on the drawing.
2What is this symbol?
text label · 7.1 pt · wire spec
The reader thinks wire spec but is not sure. Hover to see where they are on the drawing.
1What is this symbol?
text label · 7.1 pt · equipment label
The reader thinks equipment CO2 but is not sure. Hover to see where they are on the drawing.
