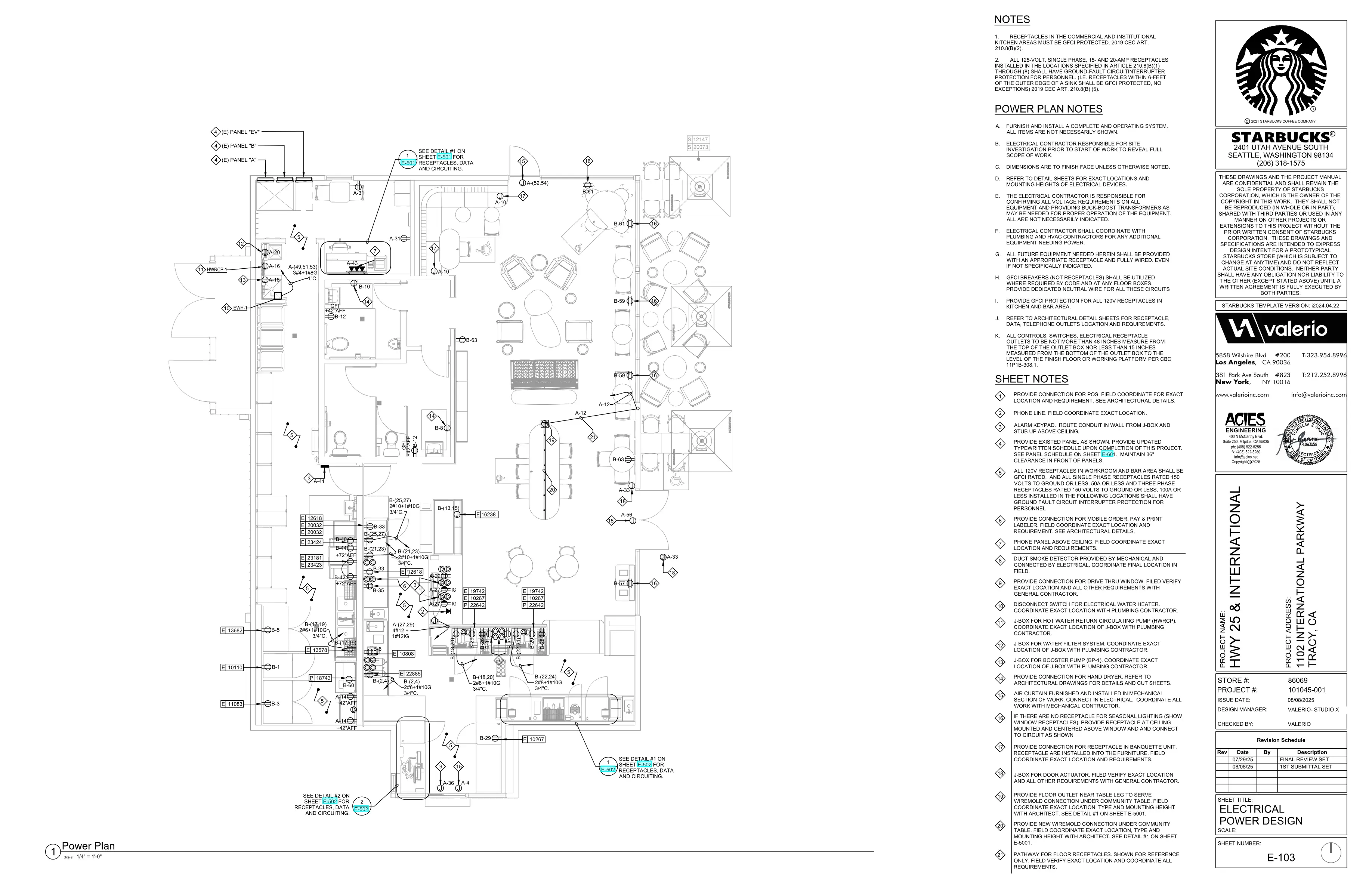

E-103 — POWER PLAN

Read from the PDF text layer via page.get_text('words'), filtered to circuit-tag patterns ('A-nn', 'B-(nn,mm)') and cross-referenced by circuit number against the panel schedule read visually off E-601. Trust text tag counts over visual sweeps (tier-1 rule). Symbol/device vector geometry (receptacle body shapes) was NOT separately extracted this run -- marks below represent the circuit homerun/device callout TEXT, not a traced symbol outline.

Names come from: no legend on this sheet, so NECA 100-2006 is what a name rests on. It is the baseline for what a symbol MEANS, never for matching shapes — proportions differ per firm. Confirming a name here is a correction, and corrections are what build the firm's file.

Scale is UNSET. Nothing on this sheet has been measured. The reader declined to infer a scale rather than guess one, so there is no raceway and no branch wire off this sheet — together the largest block of material on a job of this kind. Set it from the title block and measurement becomes available.

acting aslookadd a markstrike a markPut your name in to mark this sheet up. Looking needs no name.

zoom−100%+fit2×3×sheetonoffcountsonoff66 of 66 marks drawn

Page 50 of BID SET 101045-001_2nd Submittal Set _USE - INCLUDES E SHEETS_.pdf, which is the page the reader recorded. Nothing has confirmed it against the title block. This page has not been confirmed. Check the title block against the sheet name above before marking anything up.

Fetching page 50…

1 change on this sheet, each saved as it was made · not saved as reviewed yetSaveSave & next: E-104 →

History on this sheet (1)

• Sep 30, 2:24 AM · House rule (RRE lead estimator practice) added a suggested line — “L-0077: PANEL SAFE-OFF LABOR × 1”

Price from RRE Components2 on this sheet

Pick the RRE item for each count. The Draft Estimate opens when every sheet is answered. Put your name in above to answer these.

Double duplex receptacle — 2 lines: RECEPTACLE / DEVICE CONNECTION

No RRE Components assembly is a close match. Search the catalogue for one.

Nothing to highlight: not marked on the drawing. Counted from this sheet’s labels or schedule.

Recommended — RRE’s last retail job: 6 double duplexes, bought as 20A standard duplexes with 2-gang plates in 4/S boxes. Recommended: DOUBLE 20 AMP DUPLEX STD. One answer here prices every line in this question.

Use recommended for all 2DOUBLE 20 AMP DUPLEX STDrecommendedRRE Components 16014 · $14.67 material · 0.70 hr each

Search

Not in this bid (all 2)

None of these right? Tell the tool what this is Price as labor only Add a new item

J-box — 2 lines: RECEPTACLE / DEVICE CONNECTION

No RRE Components assembly is a close match. Search the catalogue for one.

Nothing to highlight: not marked on the drawing. Counted from this sheet’s labels or schedule.

Recommended — RRE builds a J-box as RRE Components’ J-BOX: a 4/S box, extension ring, 1-gang 3/4" ring, blank cover and T-bar hanger -- 43 on its last retail job, 19 on its last restaurant job, 75 on its last mall job. Recommended: J-BOX. One answer here prices every line in this question.

Use recommended for all 2J-BOXrecommendedRRE Components 31847 · $18.19 material · 0.37 hr each

Search

Not in this bid (all 2)

None of these right? Tell the tool what this is Price as labor only Add a new item

The reader could not settle these2

Put your name in above to answer these.

2What is this symbol?

text tag 'B-(2,4)'

The reader found this shape and could not name it. Hover to see where they are on the drawing.

Save

Skip / N/AIt is real, but another line already buys it

1What is this symbol?

text tag 'A-(52,54)'

The reader found this shape and could not name it. Hover to see where they are on the drawing.

Save

Skip / N/AIt is real, but another line already buys it

▸ Answered on this sheet1

By symbol46 of 46 shown

showing everything foundshowing named only

66

all marks

hover a group to filter the plan

Counted here, not marked on the drawing

The takeoff counted these from this sheet (circuit labels, the panel schedule) without placing a mark. Marks for drawn symbols come with the symbol-counting step.

1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION1 × RECEPTACLE / DEVICE CONNECTION

2

nobody has named it

not settled

text tag 'B-(2,4)'

1

nobody has named it

not settled

text tag 'A-(52,54)'

3

B-29 · REC-U/C Fridge (K) (E10267)

text tag 'B-29'

2

B-(17,19) · REC-Dishwasher (K) (E13578)

text tag 'B-(17,19)'

2

B-(21,23) · REC-Warming Oven #1 (K) (E20032)

text tag 'B-(21,23)'

2

B-(25,27) · REC-Warming Oven #2 (K) (E20032)

text tag 'B-(25,27)'

2

B-33 · REC-U/C Fridge (K) (E10267)

text tag 'B-33'

2

A-27 · REC-POS (IG) (D)

text tag 'A-27'

2

A-33 · Door Actuator (D)

text tag 'A-33'

2

B-(18,20) · REC-Espresso Machine #1 (K) (E19742)

text tag 'B-(18,20)'

2

B-(22,24) · REC-Espresso Machine #2 (K) (E19742)

text tag 'B-(22,24)'

2

B-31 · REC-Cup Labeler (K)

text tag 'B-31'

2

A-12 · REC-Community Table (G)

text tag 'A-12'

2

B-12 · REC-Restroom (G)

text tag 'B-12'

2

B-63 · REC-Seating (G)

text tag 'B-63'

2

A-31 · REC-Partner Break & Manager (G)

text tag 'A-31'

2

A-14 · REC-Partner Workstation (G)

text tag 'A-14'

2

B-59 · Show Window (C)

text tag 'B-59'

2

B-61 · Show Window (C)

text tag 'B-61'

2

A-10 · REC-Banquette (G)

text tag 'A-10'

1

B-6 · REC-Grinder (K) (E10808)

text tag 'B-6'

1

A-41 · Alarm Kaypad (D)

text tag 'A-41'

1

B-35 · REC-Cup Labeler (K)

text tag 'B-35'

1

A-29 · REC-POS (D)

text tag 'A-29'

1

A-(27,29) · REC-POS (D) + REC-POS (IG) (D)

text tag 'A-(27,29)'

1

B-(13,15) · Food Case (K) (E16238)

text tag 'B-(13,15)'

1

B-26 · REC-Hot Water Dispenser #1 (K)

text tag 'B-26'

1

B-28 · REC-Hot Water Dispenser #2 (K)

text tag 'B-28'

1

A-16 · HWRCP (M)

text tag 'A-16'

1

A-18 · Booster Pump (M)

text tag 'A-18'

1

A-20 · R.O. System (M)

text tag 'A-20'

1

A-(49,51,53) · EWH (3P/70A)

text tag 'A-(49,51,53)'

1

A-43 · Phone Board (D)

text tag 'A-43'

1

A-4 · (E) ACU-1 Drive-Thru (M)

text tag 'A-4'

1

B-3 · REC-Reach-In Fridge (K) (E11083)

text tag 'B-3'

1

B-8 · J-Box Hand Dryer (G)

text tag 'B-8'

1

B-44 · REC-Ice Machine (K) (E23181)

text tag 'B-44'

1

B-42 · REC-Ice Nugget Dispenser (K) (E23423)

text tag 'B-42'

1

B-40 · REC-Ice Nugget Control Panel

text tag 'B-40'

1

A-56 · (E) RTU-2 feed (M)

text tag 'A-56'

1

B-57 · Show Window (C)

text tag 'B-57'

1

B-60 · REC-Insta Hot (K)

text tag 'B-60'

1

B-1 · REC-Reach-In Fridge (K) (E10110)

text tag 'B-1'

1

B-5 · REC-Reach-In Freezer (K) (E13682)

text tag 'B-5'

1

B-10 · J-Box Hand Dryer (G)

text tag 'B-10'

1

A-36 · (E) Drive-Thru Window Power (D)

text tag 'A-36'
