Fixture tags are 5-digit numeric Design IDs printed on the plan; counted as text words at their plan position, excluding the fixture-legend strip printed once near the bottom of the sheet (same Design IDs repeat there as a key, not as plan positions -- excluded by y-coordinate). 7 lighting homerun circuit tags (A-11/13/15/17/23/25/45) extracted the same way. Additional lettered zone/switch-leg tags (A-3a, A-5e, A-7h,x, etc.) were found in the text layer but NOT resolved against the switching legend this run -- they are recorded as unclassified text_facts only, not as counted marks, to avoid inventing a meaning for them. No vector symbol-shape extraction (fixture body outlines) was performed this run; marks represent tag text positions only.
Names come from: no legend on this sheet, so NECA 100-2006 is what a name rests on. It is the baseline for what a symbol MEANS, never for matching shapes — proportions differ per firm. Confirming a name here is a correction, and corrections are what build the firm's file.
Scale is UNSET. Nothing on this sheet has been measured. The reader declined to infer a scale rather than guess one, so there is no raceway and no branch wire off this sheet — together the largest block of material on a job of this kind. Set it from the title block and measurement becomes available.
Put your name in to mark this sheet up. Looking needs no name.
zoom100%sheetcounts36 of 36 marks drawn

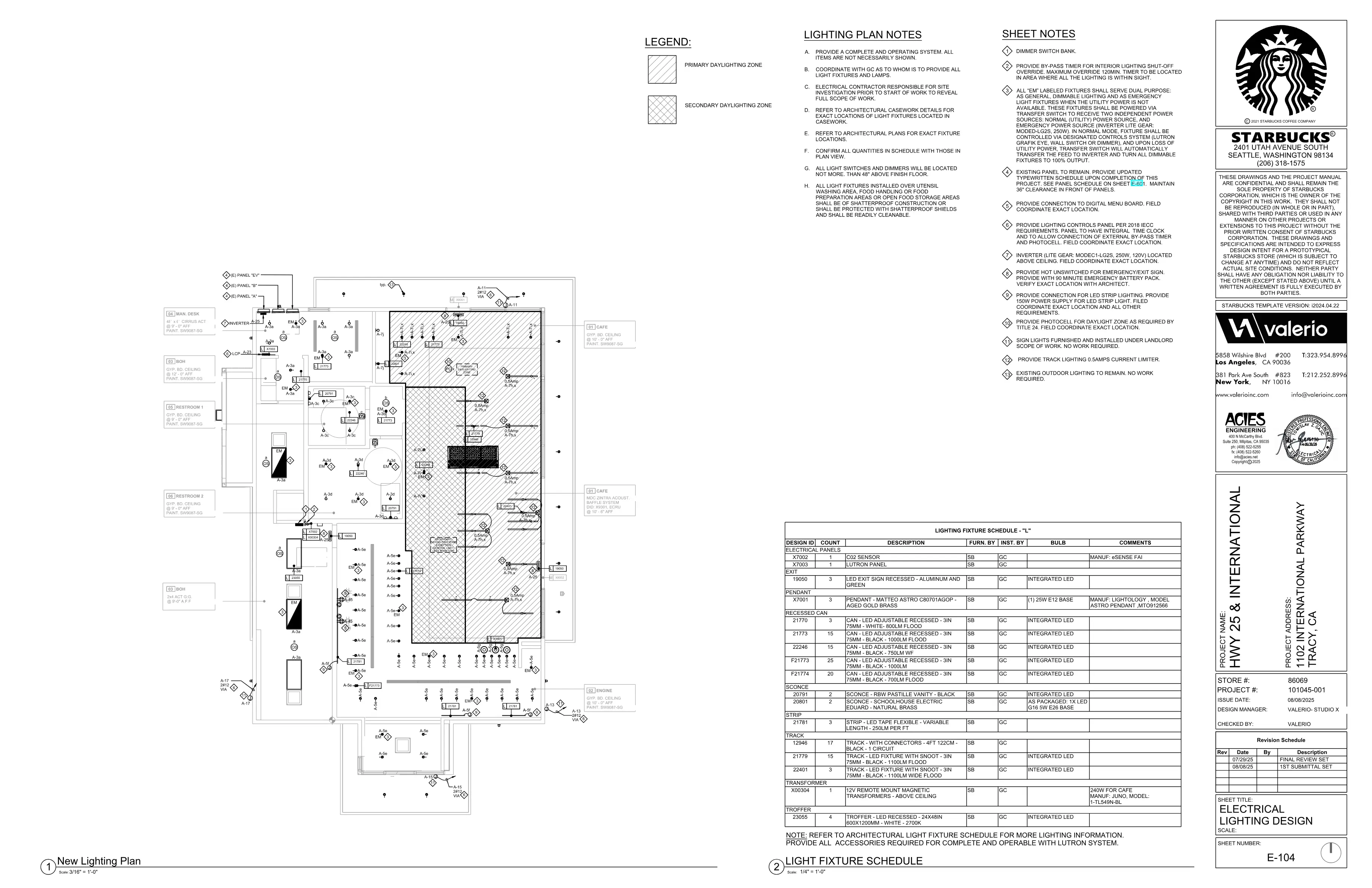

Page 51 of BID SET 101045-001_2nd Submittal Set _USE - INCLUDES E SHEETS_.pdf, which is the page the reader recorded. Nothing has confirmed it against the title block. This page has not been confirmed. Check the title block against the sheet name above before marking anything up.
Fetching page 51…
0 changes on this sheet, each saved as it was made · not saved as reviewed yet
The reader could not settle these11
Put your name in above to answer these.
4What is this symbol?
text tag '22246'
The reader thinks Lighting fixture, Design ID 22246 but is not sure. Hover to see where they are on the drawing.
3What is this symbol?
text tag '19050'
The reader thinks Lighting fixture, Design ID 19050 but is not sure. Hover to see where they are on the drawing.
3What is this symbol?
text tag '21773'
The reader thinks Lighting fixture, Design ID 21773 but is not sure. Hover to see where they are on the drawing.
3What is this symbol?
text tag '21781'
The reader thinks Lighting fixture, Design ID 21781 but is not sure. Hover to see where they are on the drawing.
2What is this symbol?
text tag '20791'
The reader thinks Lighting fixture, Design ID 20791 but is not sure. Hover to see where they are on the drawing.
1What is this symbol?
text tag '12946'
The reader thinks Lighting fixture, Design ID 12946 but is not sure. Hover to see where they are on the drawing.
1What is this symbol?
text tag '20801'
The reader thinks Lighting fixture, Design ID 20801 but is not sure. Hover to see where they are on the drawing.
1What is this symbol?
text tag '21770'
The reader thinks Lighting fixture, Design ID 21770 but is not sure. Hover to see where they are on the drawing.
1What is this symbol?
text tag '21779'
The reader thinks Lighting fixture, Design ID 21779 but is not sure. Hover to see where they are on the drawing.
1What is this symbol?
text tag '22401'
The reader thinks Lighting fixture, Design ID 22401 but is not sure. Hover to see where they are on the drawing.
1What is this symbol?
text tag '23055'
The reader thinks Lighting fixture, Design ID 23055 but is not sure. Hover to see where they are on the drawing.
