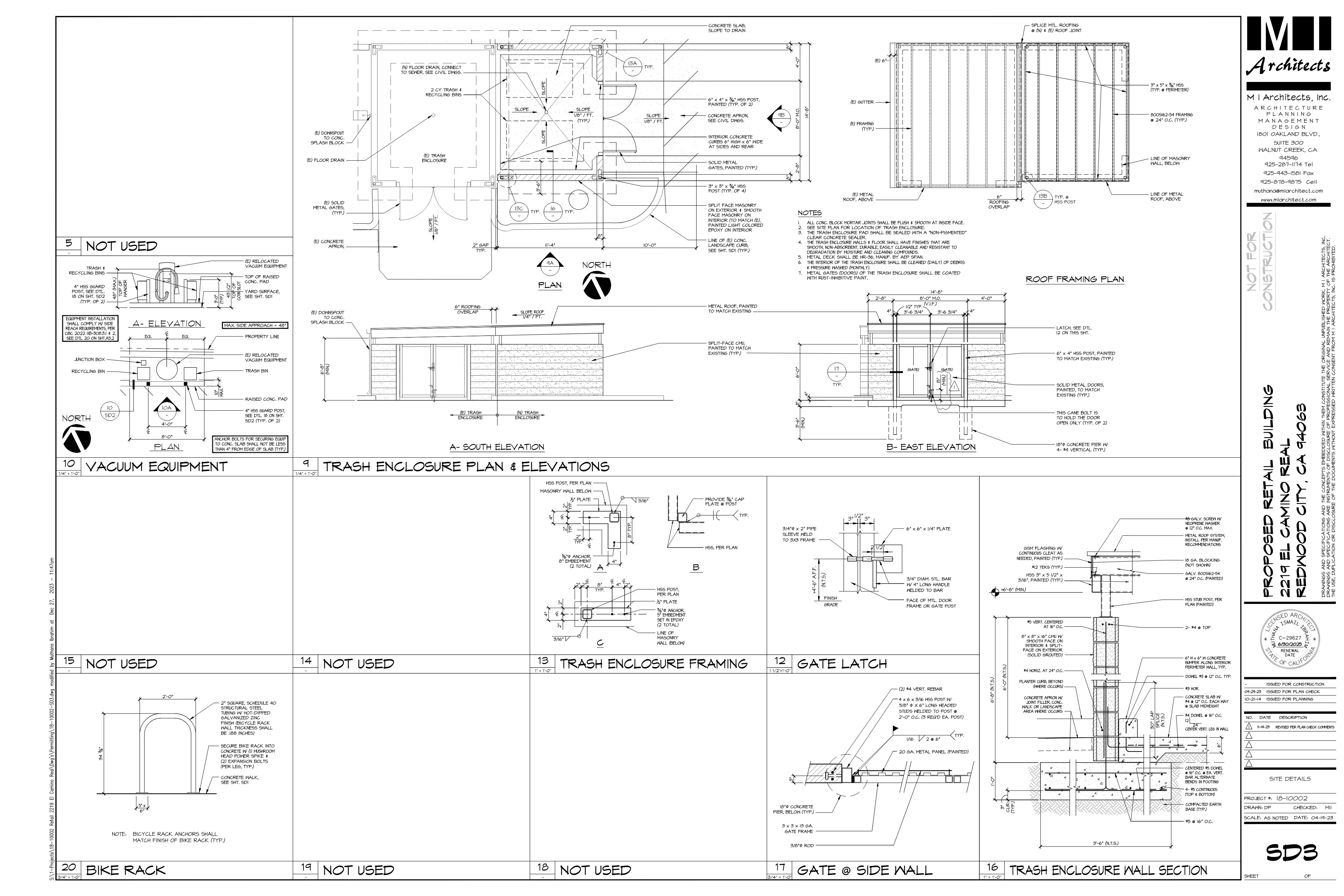

SD3 — SITE DETAILS

Other-trade sheet read for electrical scope only. Detail 10 VACUUM EQUIPMENT at 1/4"=1'-0" (view title; 8'-0" pad dimension checks at 18 pt/ft). One junction box located from the vector square (9 pt, pen 0.72) labelled JUNCTION BOX.

Names come from: no legend on this sheet, so NECA 100-2006 is what a name rests on. It is the baseline for what a symbol MEANS, never for matching shapes — proportions differ per firm. Confirming a name here is a correction, and corrections are what build the firm's file.

Scale is 1/4"=1'-0" — 18 points per foot. Read off the title block, so measurement off this sheet is available. A later correction flags any measurement taken under the old scale as stale rather than silently recomputing it.

acting aslookadd a markstrike a markPut your name in to mark this sheet up. Looking needs no name.

zoom−100%+fit2×3×sheetonoffcountsonoff1 of 1 marks drawn

Page 9 of Copy of Drawings.pdf, recorded by the read.

Fetching page 9…

0 changes on this sheet, each saved as it was made · not saved as reviewed yetSave

By symbol1 of 1 shown

showing everything foundshowing named only

1

all marks

hover a group to filter the plan

Counted here, not marked on the drawing

The takeoff counted these from this sheet (circuit labels, the panel schedule) without placing a mark. Marks for drawn symbols come with the symbol-counting step.

1 × EQUIPMENT CONNECTION, RELOCATED (E) COIN-OPERATED VACUUM UNIT, 120V (ASSUMED) LIQUIDTIGHT FLEX WHIP FROM PAD JUNCTION BOX

1

JUNCTION BOX · vacuum equipment pad

square · 9 pt · pen 0.72 · 0 companions

takeoff: JUNCTION BOX 6"x6" WEATHERPROOF NEMA 3R, PAD-MOUNTED STUB-UP ON RAISED CONCRETE PAD, POWER FOR RELOCATED (E) VACUUM EQUIPMENT
