Read from the text layer in 67 ms: 7,151 characters across 414 laid-out runs, tier 1. Marks below are TEXT labels at their own positions, not a geometry sweep — on a tier-1 set text tag counts beat a visual sweep, and a mark read off a label arrives named rather than as a shape nobody can identify. Scale read off the sheet as 3/4" = 1'-0" — 54 points per foot. No schedule was found on this sheet, so the whole plan area was swept.
Names come from: no legend on this sheet, so NECA 100-2006 is what a name rests on. It is the baseline for what a symbol MEANS, never for matching shapes — proportions differ per firm. Confirming a name here is a correction, and corrections are what build the firm's file.
Scale is 3/4" = 1'-0" — 54 points per foot. Read off the title block, so measurement off this sheet is available. A later correction flags any measurement taken under the old scale as stale rather than silently recomputing it.
54 pt/ft
Put your name in to mark this sheet up. Looking needs no name.
zoom100%sheetcounts145 of 145 marks drawn

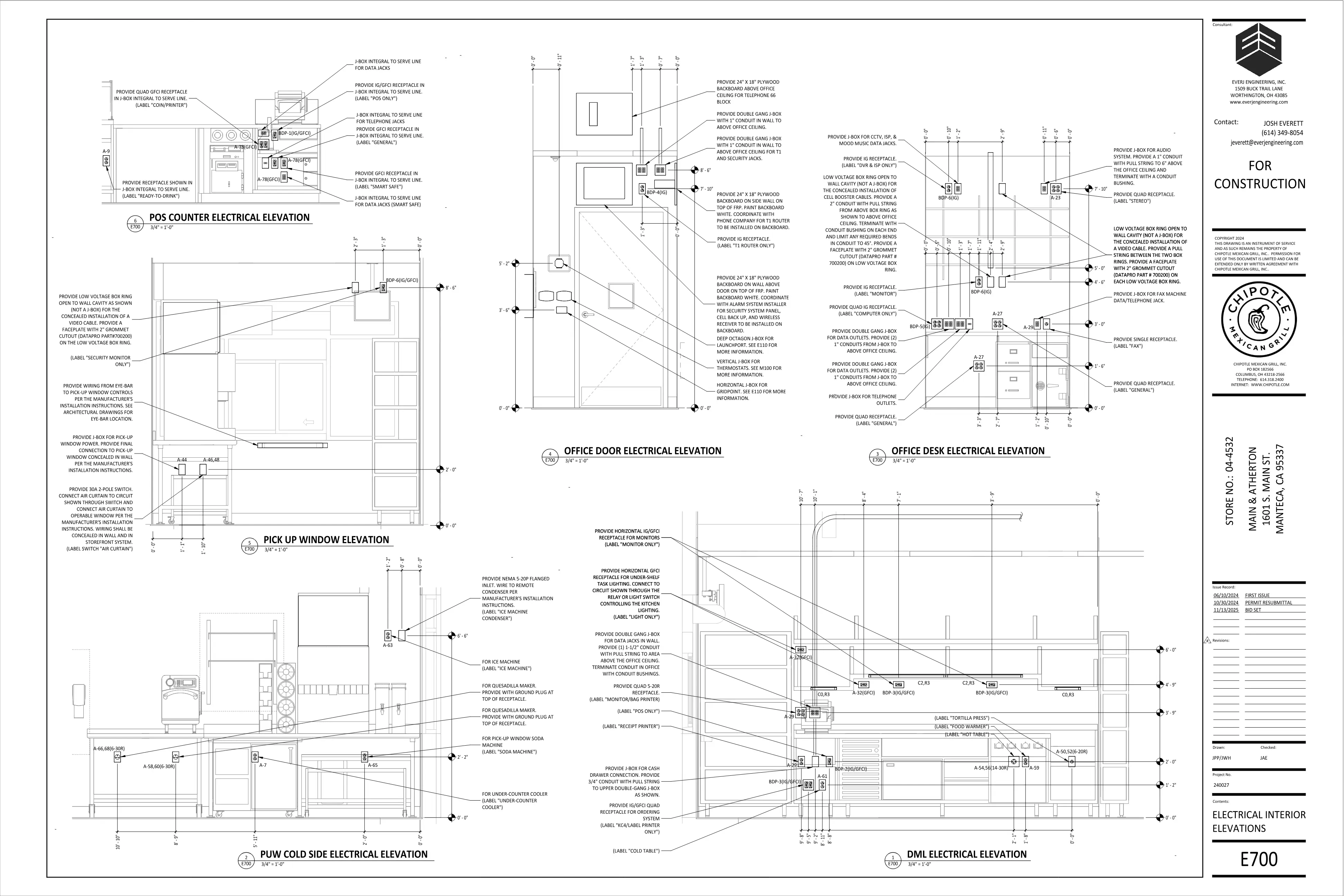

Page 51 of 04-4532-construction-set-2026-02-02.pdf, located by title block, confirmed by the page the read recorded.
Fetching page 51…
0 changes on this sheet, each saved as it was made · not saved as reviewed yet
The reader could not settle these2
Put your name in above to answer these.
103What is this symbol?
text label · 10.6 pt · mounting height
The reader thinks mounting height but is not sure. Hover to see where they are on the drawing.
14What is this symbol?
text label · 10.5 pt · homerun callout
The reader thinks homerun callout but is not sure. Hover to see where they are on the drawing.
