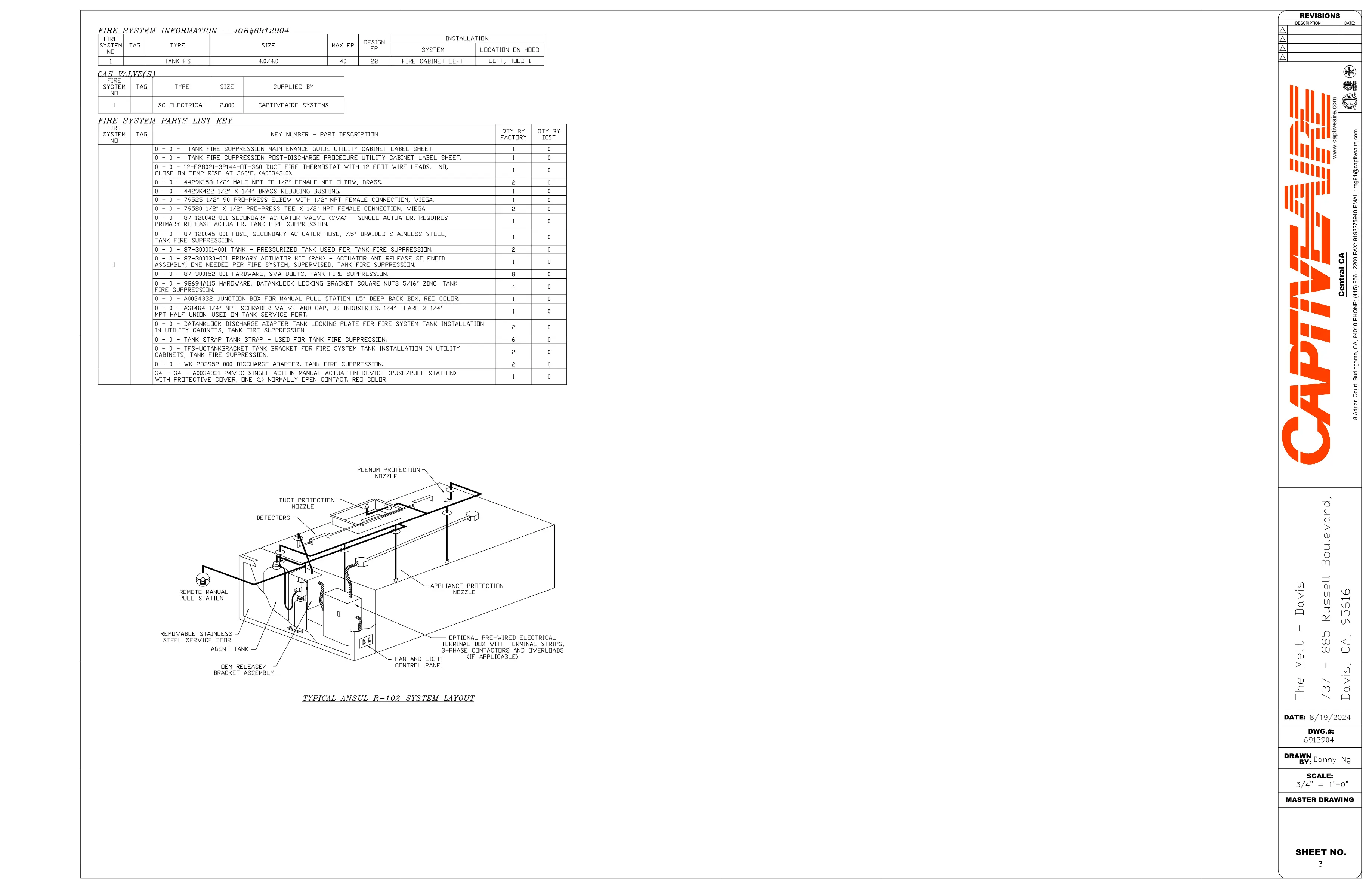

004-Copy-of-S_CaptvieAire-208V_pdf-p3 — CaptiveAire Master Drawing 6912904 sheet 3 - Fire system information (TANK FS, hood 1), gas valve schedule, fire system parts list, typical Ansul R-102 layout

Schedules read from the text layer; pull station also located on the typical R-102 isometric. Counts from schedule rows.

Names come from: no legend on this sheet, so NECA 100-2006 is what a name rests on. It is the baseline for what a symbol MEANS, never for matching shapes — proportions differ per firm. Confirming a name here is a correction, and corrections are what build the firm's file.

Scale is UNSET. Nothing on this sheet has been measured. The reader declined to infer a scale rather than guess one, so there is no raceway and no branch wire off this sheet — together the largest block of material on a job of this kind. Set it from the title block and measurement becomes available.

acting aslookadd a markstrike a markPut your name in to mark this sheet up. Looking needs no name.

zoom−100%+fit2×3×sheetonoffcountsonoff2 of 2 marks drawn

Page 3 of Copy of S_CaptvieAire 208V_pdf.pdf, recorded by the read.

Fetching page 3…

0 changes on this sheet, each saved as it was made · not saved as reviewed yetSaveSave & next: 004-Copy-of-S_CaptvieAire-208V_pdf-p11 →

Price from RRE Components1 on this sheet

Pick the RRE item for each count. The Draft Estimate opens when every sheet is answered. Put your name in above to answer these.

Duct smoke detector — 2 lines: DUCT SMOKE DETECTOR, DUCT-MOUNTED W/ SAMPLING TUBE AND HOUSING (EC FURNISH & WIRE, MC INSTALL IN DUCT) · DUCT SMOKE DETECTOR REMOTE ALARM INDICATOR / KEY TEST STATION, 1-GANG, W/ 4" SQ BOX + 3/4" EMT STUB 12 FT

No RRE Components assembly is a close match. Search the catalogue for one.

Nothing to highlight: not marked on the drawing. Counted from this sheet’s labels or schedule.

Recommended: not in this bid — Not in this bid: RRE carried no duct detectors, test stations or their interlock wiring on its last three estimates (the mechanical contractor installs them and the fire alarm contractor wires them). Price them only where the mechanical notes put furnish-and-wire on the EC and the bid carries it. One answer here prices every line in this question.

Also answers 2 lines of this kind on other sheets: DUCT SMOKE DETECTOR, DUCT-MOUNTED W/ SAMPLING TUBE AND HOUSING, MAKE-UP AIR (SF-1 / CAPTIVEAIRE SUP-3) SUPPLY DUCT (EC FURNISH & WIRE, MC INSTALL IN DUCT) · DUCT SMOKE DETECTOR REMOTE ALARM INDICATOR / KEY TEST STATION, 1-GANG, W/ 4" SQ BOX + 3/4" EMT STUB 12 FT, FOR MAKE-UP AIR DUCT DETECTOR

Search

Not in this bid (all 4)recommended

None of these right? Tell the tool what this is Price as labor only Add a new item

Lines RRE adds for this sheet2 to answer

RRE carries these on jobs like this one, and no symbol on the drawing counts them. Add each with a count, or answer “not in this bid”. The Draft Estimate opens when every one is answered. Put your name in above to answer these.

RRE PER-JOB KIT

The allowance RRE carries on every job: 20 5/8" anchors with all-thread, nuts and washers, sealant, five screw-cover boxes, channel cuts, pull tape and a $50 device allowance.

Recommended — RRE priced this on 4 of 5 past jobs (80%). RRE carried these items at identical quantities on each of its last three jobs -- a fixed allowance, not a count (11.5 hr, $582). Recommended: RRE-HOUSE-KIT, once per job.

eaRRE-HOUSE-KIT · RRE PER-JOB KIT (anchors, sealant, screw-cover boxes, channel cuts, pull tape ...) · 11.46 hr eachAdd to takeoffNot in this bid

RRE PER-JOB LOOSE PARTS

276 tan wire nuts, 92 insulated pigtails, 184 anti-short bushings with their screws, a 4x8 plywood backboard and 1" PVC fittings.

Recommended — RRE priced this on 4 of 5 past jobs (80%). RRE carried these at exactly these quantities on its two larger jobs (22.0 hr, $150), and about an eighth of them, with no backboard, on its smallest. Recommended: RRE-HOUSE-KIT-LOOSE on a job of restaurant or larger-retail size; leave it off a small fit-out.

eaRRE-HOUSE-KIT-LOOSE · RRE PER-JOB LOOSE PARTS (wire nuts, pigtails, bushings, backboard, PVC fittings) · 21.96 hr eachAdd to takeoffNot in this bid

By symbol2 of 2 shown

showing everything foundshowing named only

2

all marks

hover a group to filter the plan

1

1 · Remote manual pull station

schedule/detail entry

takeoff: REMOTE MANUAL PULL STATION BACKBOX, 1.5" DEEP RED J-BOX (CAPTIVEAIRE A0034332, FACTORY-FURNISHED) - EC MOUNT + 3/4" EMT STUB TO HOOD FIRE CABINET

1

SC ELECTRICAL 2.000 · 1 · Electric gas valve 2" SC electrical

schedule/detail entry

takeoff: ELECTRIC GAS SHUTOFF VALVE 2" (CAPTIVEAIRE 'SC ELECTRICAL', FURNISHED BY CAPTIVEAIRE, SET BY PLUMBER) - EC 120V CONNECTION + FLEX WHIP FROM HOOD CONTROL PANEL
