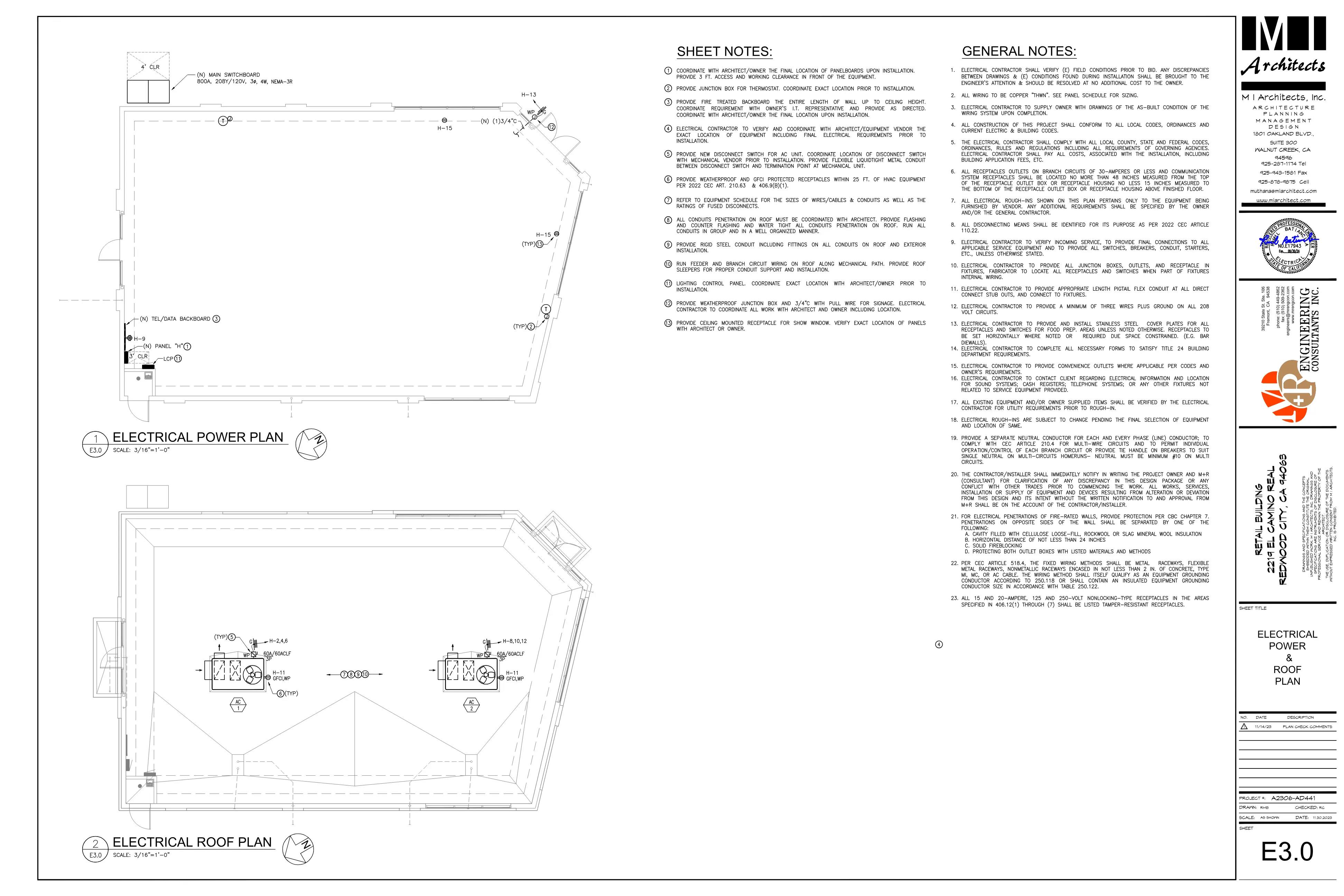

E3.0 — ELECTRICAL POWER & ROOF PLAN

Plan lettering is outlined (symbol scan found only letter glyphs); devices, tags and homeruns read by eye off the page image and located in PDF points. Branch hand-modelled Manhattan at 13.5 pt/ft.

Names come from: no legend on this sheet, so NECA 100-2006 is what a name rests on. It is the baseline for what a symbol MEANS, never for matching shapes — proportions differ per firm. Confirming a name here is a correction, and corrections are what build the firm's file.

Scale is 3/16"=1'-0" — 13.5 points per foot. Read off the title block, so measurement off this sheet is available. A later correction flags any measurement taken under the old scale as stale rather than silently recomputing it.

acting aslookadd a markstrike a markPut your name in to mark this sheet up. Looking needs no name.

zoom−100%+fit2×3×sheetonoffcountsonoff13 of 13 marks drawn

Page 59 of Copy of Drawings.pdf, recorded by the read.

Fetching page 59…

10 changes on this sheet, each saved as it was made · reopened by kelchlin Oct 3, 8:25 PM: save again when doneSaveSave & next: E4.0 →

History on this sheet (14)

• Oct 3, 8:25 PM · kelchlin reopened the sheet
• Oct 3, 7:49 PM · kelchlin saved the sheet
• Sep 30, 5:45 PM · kelchlin saved the sheet
• Sep 30, 4:47 PM · kelchlin settled a footage — “L-0067 = 1 ft”
• Sep 30, 4:47 PM · kelchlin added a suggested line — “L-0123: EMT STRAPS BEYOND THE CATALOGUE SPACING × 98”
• Sep 30, 4:24 PM · kelchlin saved the sheet
• Sep 30, 4:24 PM · kelchlin settled a footage — “L-0067 = 1 ft”
• Sep 30, 4:23 PM · kelchlin settled a footage — “L-0075 = 101.7 ft”
• Sep 30, 4:23 PM · kelchlin settled a footage — “L-0074 = 305.1 ft”
• Sep 30, 4:23 PM · kelchlin settled a footage — “L-0073 = 202.7 ft”
• Sep 30, 4:23 PM · kelchlin settled a footage — “L-0072 = 622.4 ft”
• Sep 30, 4:22 PM · kelchlin settled a footage — “L-0071 = 67.6 ft”
• Sep 30, 4:22 PM · kelchlin settled a footage — “L-0069 = 128.1 ft”
• Sep 30, 4:22 PM · kelchlin settled a footage — “L-0067 = 0 ft”

▾ Answered on this sheet2

Put your name in above to reopen one.

Suggested line

EMT STRAPS BEYOND THE CATALOGUE SPACING

Added, 98 ea · kelchlin · Sep 30, 4:47 PM

Reopen

Price

FUSE 60A 250V CURRENT-LIMITING CLASS RK5 — AC-1/AC-2 disconnects, 3 each · FUSE 60A 250V CLASS RK5 DUAL-ELEMENT CURRENT-LIMITING — Fuses for AC-1/AC-2 disconnects, 3 per 3P switch · 1" RIGID GALVANIZED STEEL CONDUIT (RGS), ROOF — AC-1 and AC-2 feeders on roof, 1"C each per callout (SN9 rigid steel on roof)

Not in this bid · kelchlin · Sep 30, 4:18 PM

Reopen

Footage0 need you · 7 read by the reader

Nothing here needs you: every run has a length the reader measured or read off the drawing.

Show the 7 the reader gave a length (to check or change)

By symbol10 of 10 shown

showing everything foundshowing named only

13

all marks

hover a group to filter the plan

Counted here, not marked on the drawing

The takeoff counted these from this sheet (circuit labels, the panel schedule) without placing a mark. Marks for drawn symbols come with the symbol-counting step.

0 × DISCONNECT SWITCH 60A 3P 240V FUSED NEMA 3R (60A CURRENT-LIMITING FUSES) - AC-10 × DISCONNECT SWITCH 60A 3P 240V FUSED NEMA 3R (60A CURRENT-LIMITING FUSES) - AC-20 × FUSE 60A 250V CURRENT-LIMITING CLASS RK52 × 1" LIQUIDTIGHT FLEXIBLE METAL CONDUIT WHIP 24" MIN WITH CONNECTORS (AC UNIT CONNECTION)1 × EQUIPMENT CONNECTION, SIGNAGE 120V 1P (HARD-WIRED AT WP J-BOX)6 × FUSE 60A 250V CLASS RK5 DUAL-ELEMENT CURRENT-LIMITING0 × LIQUIDTIGHT FLEXIBLE METAL CONDUIT 1" (LFMC WHIP) WITH CONNECTORS2 × EQUIPMENT CONNECTION, AC UNIT 208V 3P 46A (TRANE WHC102H3)101.7 × 1" RIGID GALVANIZED STEEL CONDUIT (RGS), ROOF67.6 × 3/4" RIGID GALVANIZED STEEL CONDUIT (RGS), ROOF622.4 × #12 THHN/THWN CU WIRE202.7 × #12 THWN CU WIRE, ROOF305.1 × #4 THWN CU WIRE101.7 × #10 THWN CU WIRE (EQUIPMENT GROUND)

2

E3.0 · thermostat J-box (kn 2)

read by eye off the page image

takeoff: JUNCTION BOX 4" SQUARE WITH SINGLE-GANG RING, THERMOSTAT

2

E3.0 · ceiling receptacle show window H-15

read by eye off the page image

takeoff: DUPLEX RECEPTACLE 20A 125V TAMPER-RESISTANT, CEILING MOUNTED (SHOW WINDOW)

2

E3.0 · GFCI WP roof receptacle H-11

read by eye off the page image

takeoff: GFCI RECEPTACLE 20A 125V WEATHERPROOF, TR/WR, WITH IN-USE COVER (ROOF)

1

E3.0 · WP J-box signage H-13

read by eye off the page image

takeoff: JUNCTION BOX, WEATHERPROOF, CAST (WP J-BOX) FOR SIGNAGE, 3/4"C WITH PULL WIRE

1

E3.0 · quad receptacle H-9 tel/data

read by eye off the page image

takeoff: DOUBLE DUPLEX (QUAD) RECEPTACLE 20A 125V TAMPER-RESISTANT, 2-GANG

1

E3.0 · WP disconnect 60A/60A 3P AC-1

read by eye off the page image

takeoff: DISCONNECT SWITCH 60A 3P 240V FUSED NEMA 3R, 60A FUSES - AC-1

1

E3.0 · WP disconnect 60A/60A 3P AC-2

read by eye off the page image

takeoff: DISCONNECT SWITCH 60A 3P 240V FUSED NEMA 3R, 60A FUSES - AC-2

1

E3.0 · tel/data backboard (kn 3)

read by eye off the page image

takeoff: TEL/DATA BACKBOARD, 3/4" FIRE-TREATED PLYWOOD, FULL WALL HEIGHT

1

E3.0 · LCP (kn 11)

read by eye off the page image

takeoff: LIGHTING CONTROL PANEL (LCP), SURFACE

1

E3.0 · homerun conduit & wire

read by eye off the page image

takeoff: 3/4" EMT CONDUIT
