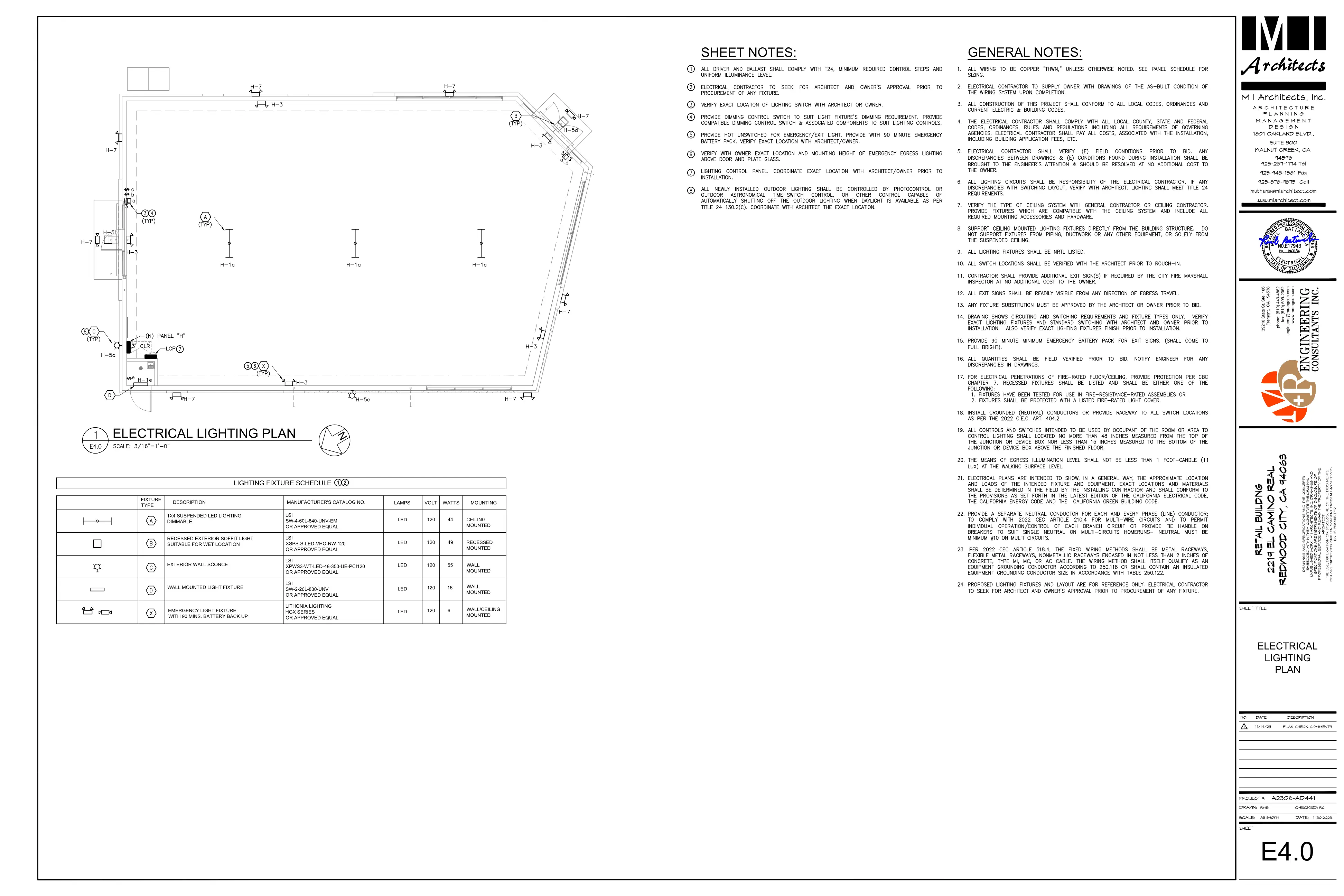

E4.0 — ELECTRICAL LIGHTING PLAN

Fixtures, switches and LCP counted by looking at the 300-dpi render (symbol scanner returned only outline-text glyph groups). Lighting branch from raceway_model.py in untagged mode, rescaled to 13.5 pt/ft.

Names come from: no legend on this sheet, so NECA 100-2006 is what a name rests on. It is the baseline for what a symbol MEANS, never for matching shapes — proportions differ per firm. Confirming a name here is a correction, and corrections are what build the firm's file.

Scale is 3/16"=1'-0" — 13.5 points per foot. Read off the title block, so measurement off this sheet is available. A later correction flags any measurement taken under the old scale as stale rather than silently recomputing it.

acting aslookadd a markstrike a markPut your name in to mark this sheet up. Looking needs no name.

zoom−100%+fit2×3×sheetonoffcountsonoff28 of 28 marks drawn

Page 60 of Copy of Drawings.pdf, recorded by the read.

Fetching page 60…

7 changes on this sheet, each saved as it was made · ✓ confirmed by kelchlin Sep 30, 5:46 PMReopen sheetSaveSave & next: E5.0 →

History on this sheet (9)

• Sep 30, 5:46 PM · kelchlin saved the sheet
• Sep 30, 4:26 PM · kelchlin saved the sheet
• Sep 30, 4:26 PM · kelchlin settled a footage — “L-0119 = 20 ft”
• Sep 30, 4:25 PM · kelchlin settled a footage — “L-0118 = 58 ft”
• Sep 30, 4:25 PM · kelchlin added a suggested line — “L-0120: MC CONNECTORS × 13”
• Sep 30, 4:25 PM · kelchlin settled a footage — “L-0088 = 1619 ft”
• Sep 30, 4:25 PM · kelchlin settled a footage — “L-0087 = 418 ft”
• Sep 30, 4:25 PM · kelchlin added a suggested line — “L-0119: MC LUMINARY CABLE 12/3 TO FIXTURES × 20”
• Sep 30, 4:25 PM · kelchlin added a suggested line — “L-0118: MC LUMINARY CABLE 16-2 TO FIXTURES × 58”

▸ Answered on this sheet4

Footage0 need you · 4 read by the reader

Nothing here needs you: every run has a length the reader measured or read off the drawing.

Show the 4 the reader gave a length (to check or change)

By symbol9 of 9 shown

showing everything foundshowing named only

28

all marks

hover a group to filter the plan

Counted here, not marked on the drawing

The takeoff counted these from this sheet (circuit labels, the panel schedule) without placing a mark. Marks for drawn symbols come with the symbol-counting step.

418 × CONDUIT, EMT 3/4" WITH FITTINGS AND SUPPORTS - LIGHTING BRANCH1619 × WIRE, #12 THHN/THWN CU - LIGHTING BRANCH (3 WIRES PER CIRCUIT: HOT, NEUTRAL, GROUND)107 × WIRE, 0-10V DIMMING CONTROL PAIR 2 #16 (CLASS 1 RATED) - IN LIGHTING EMT

8

Type X, H-7 exterior · X (H-7) · emergency light exterior

twin head / bowtie

takeoff: LIGHT FIXTURE TYPE X - EMERGENCY LIGHT 6W 120V, 90 MIN BATTERY, LITHONIA HGX OR EQUAL - EXTERIOR / WET LOCATION (EGRESS DISCHARGE)

5

Type X, H-3 · X (H-3) · emergency light interior

twin head

takeoff: LIGHT FIXTURE TYPE X - EMERGENCY LIGHT TWIN HEAD 6W 120V, 90 MIN BATTERY, LITHONIA HGX OR EQUAL

4

$ (b,c,d,e) · single pole switch

$

takeoff: SWITCH, SINGLE POLE 20A 120/277V, DECORA, WITH BOX AND PLATE

3

Type A, H-1a · A (H-1a) · 1x4 suspended LED dimmable

1x4 bar

takeoff: LIGHT FIXTURE TYPE A - 1X4 SUSPENDED LED 44W 120V DIMMABLE (0-10V), LSI SW-4-60L-840-UNV-EM OR EQUAL

2

Type B · B (H-5b/H-5d) · recessed exterior soffit

square

takeoff: LIGHT FIXTURE TYPE B - RECESSED EXTERIOR SOFFIT LIGHT 49W 120V WET LOCATION, LSI XSPS-S-LED-VHO-NW-120 OR EQUAL

2

Type C · C (H-5c) · exterior wall sconce

sconce

takeoff: LIGHT FIXTURE TYPE C - EXTERIOR WALL SCONCE 55W 120V, LSI XPWS3-WT-LED-48-350-UE-PCI120 OR EQUAL

2

dimmer zone a · $3 (a) · 0-10V dimmer 3-way

boxed $ 3

takeoff: DIMMER SWITCH, 0-10V 3-WAY (MULTI-LOCATION) LED DIMMING CONTROL, WITH BOX AND PLATE

1

Type D · D (H-1e) · wall mounted light

bar

takeoff: LIGHT FIXTURE TYPE D - WALL MOUNTED LED 16W 120V, LSI SW-2-20L-830-UNV OR EQUAL

1

LCP keynote 7 · LCP · lighting control panel

filled rect

takeoff: LIGHTING CONTROL PANEL (LCP) WITH ASTRONOMICAL TIME SWITCH / PHOTOCONTROL INPUT, SURFACE, 120V
