Screened, not decidedkelchlin has answered some of the job type criteria. No bid decision has been recorded.Restaurant · TI · $50,000 – $100,000Step 2 →
Lettering outlined; tags read from page image crops, symbols from vector scan.
Names come from: no legend on this sheet, so NECA 100-2006 is what a name rests on. It is the baseline for what a symbol MEANS, never for matching shapes — proportions differ per firm. Confirming a name here is a correction, and corrections are what build the firm's file.
Scale is 1/4" = 1'-0" — 18 points per foot. Read off the title block, so measurement off this sheet is available. A later correction flags any measurement taken under the old scale as stale rather than silently recomputing it.
18 pt/ft · set by model
Put your name in to mark this sheet up. Looking needs no name.
zoom100%sheetcounts165 of 165 marks drawn

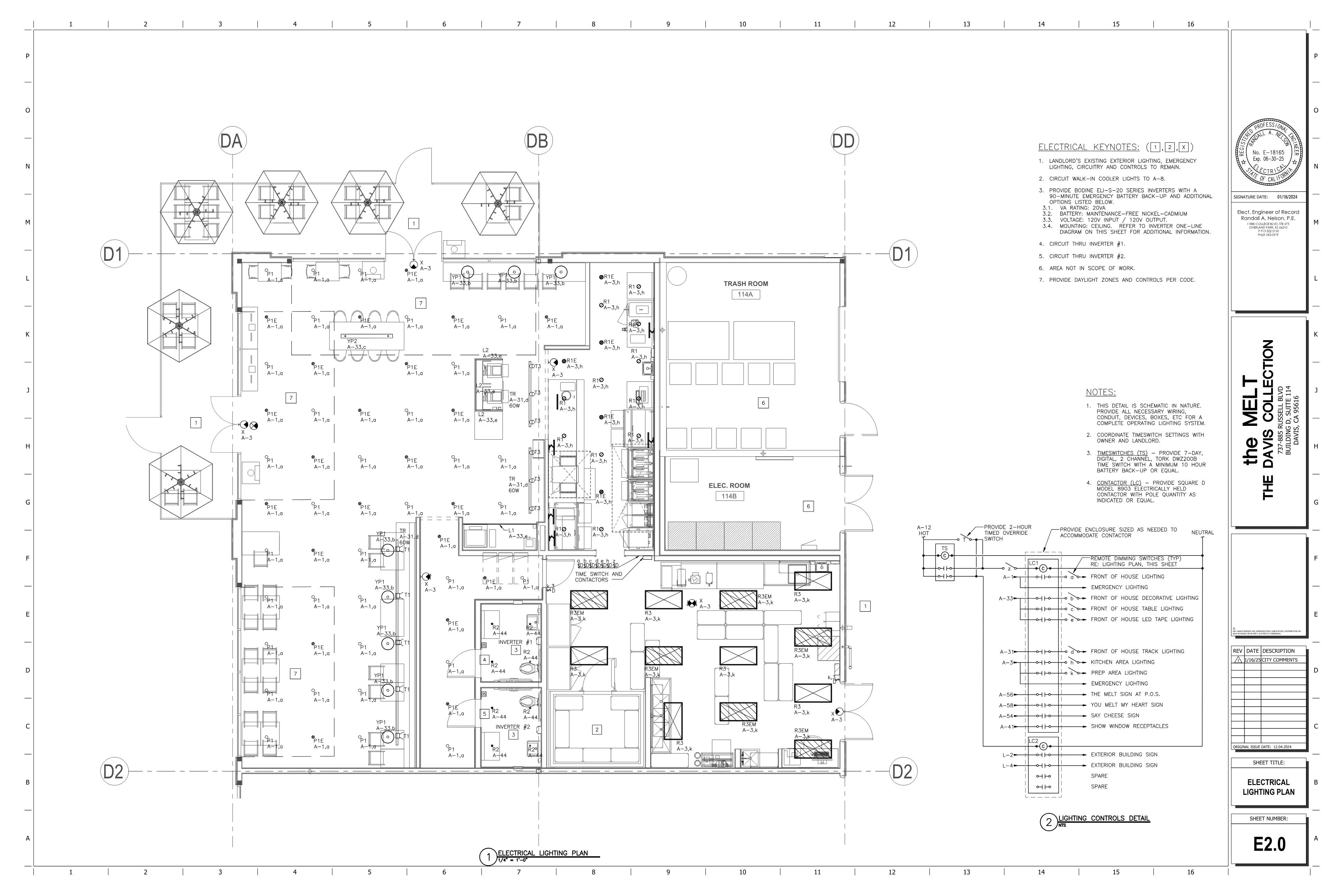

Page 38 of Copy of Drawings.pdf, recorded by the read.
Fetching page 38…
0 changes on this sheet, each saved as it was made · not saved as reviewed yet
Price from RRE Components2 on this sheet
Pick the RRE item for each count. The Draft Estimate opens when every sheet is answered. Put your name in above to answer these.
Track measured in feet — TRACK - SUSPENDED LINE-VOLTAGE TRACK (CONTECH LT), TYPE TR
No RRE Components assembly is a close match. Search the catalogue for one.
Ringed yellow with “$” on the drawing.
Recommended: not in this bid — Track is priced by the section (8' and 4' pieces), not by the foot, and this takeoff's track section lines count the same track. Recommended: Not in this bid, so the track is not priced twice. If no section line counts it, add the sections instead: the feet ÷ 8, as TRACK 8' HALO.
recommended
None of these right?
Feeder wire by the foot — #16 THHN CU WIRE, 0-10V DIMMING PAIR (FULL CIRCUIT)
No RRE Components assembly is a close match. Search the catalogue for one.
Ringed purple with “$” on the drawing.
Recommended: not in this bid — Wire measured in feet with no size on the line. Choose the THHN pull-only item by size -- never an hour item, which would price each foot as an hour.
recommended
None of these right?
Lines RRE adds for this sheet5 to answer
RRE carries these on jobs like this one, and no symbol on the drawing counts them. Add each with a count, or answer “not in this bid”. The Draft Estimate opens when every one is answered. Put your name in above to answer these.
UNISTRUT FOR TRACK SUPPORT
1-5/8" P1000 unistrut carrying the 36 ft of track to structure.
Recommended — RRE priced this on 3 of 5 past jobs (60%). RRE’s last retail job: 692 ft of track (77 × 8' + 19 × 4'), 1,262.6 ft of 1-5/8" unistrut (2× the 629 ft drawn -- mall rule: supports to the joist, never the deck), 70 trapeze supports with 2 rods each (140 × 3 ft of 3/8" all-thread), one beam clamp per rod. 1 RRE estimate so far -- one job, so treat the ratio as a starting point, not a norm. Recommended: RRE-UNISTRUT-FT, RRE’s own item at 0.09 hr/ft.
Estimated from RRE’s ratio, not measured. Change it if you measured; the line records which.
How to count: Measure the strut on the RCP if it is drawn. From RRE's ratio (1.82 ft of unistrut per ft of track), this job's 36 ft of track is about 66 ft.
3/8" ALL THREAD ROD DROPS FOR TRACK STRUT
3/8" all-thread drops from structure to the strut, 3 ft each with washers, as RRE bid it. The beam clamp at the top of each rod is its own line, below.
Recommended — RRE priced this on 2 of 5 past jobs (40%). RRE’s last retail job: 692 ft of track (77 × 8' + 19 × 4'), 1,262.6 ft of 1-5/8" unistrut (2× the 629 ft drawn -- mall rule: supports to the joist, never the deck), 70 trapeze supports with 2 rods each (140 × 3 ft of 3/8" all-thread), one beam clamp per rod. 1 RRE estimate so far -- one job, so treat the ratio as a starting point, not a norm.
eaRRE-ROD-DROP · 3/8" ALL THREAD ROD DROP, 3 FT W/ WASHERS (per drop) · 0.04 hr each
Estimated from RRE’s ratio, not measured. Change it if you measured; the line records which.
How to count: One per rod drop (3 ft of rod each on RRE’s last retail job). From RRE's ratio (0.20 rod drops per ft of track, 3.0 ft each), this job's 36 ft of track is about 7 drops (21 ft of rod, 4 × 6 ft rods).
3/8" BEAM CLAMP AT EACH ROD DROP
A 3/8" beam clamp with saddle washer and nuts where each rod drop meets the steel.
Recommended — RRE priced this on 2 of 5 past jobs (40%). RRE’s last retail job: 140 beam clamps for 140 rod drops, one each (item 7522 with saddle washer 5987 and three nuts 5994). Recommended: RRE-BEAM-CLAMP-ROD, priced exactly as RRE bid it: 0.22 hr and $6.78 a clamp.
Estimated from RRE’s ratio, not measured. Change it if you measured; the line records which.
How to count: The same count as the rod drops: about 7 on this job. Leave it out where the rods land in wood or concrete, not steel.
TENMAT FIRE-RATED COVER OVER RECESSED DOWNLIGHT
A Tenmat FF109-300 cover over each recessed downlight in a fire-rated ceiling.
Recommended — RRE priced this on 1 of 5 past jobs (20%). RRE’s last retail job: 79 Tenmat FF109-300 covers for its 79 recessed downlights, one each, at 0.10 hr and $8.66. Recommended: RRE-TENMAT, priced as RRE bid it.
Estimated from RRE’s ratio, not measured. Change it if you measured; the line records which.
How to count: One per recessed downlight in a rated ceiling assembly: up to 46 on this job. Check the ceiling rating on the RCP or the life-safety plan; none where the ceiling is not rated.
EMT STRAPS BEYOND THE CATALOGUE SPACING
The 1-hole straps RRE adds to branch EMT: the EMT item carries one per 8 ft; RRE straps every 3-4 ft.
Recommended — RRE priced this on 5 of 5 past jobs (100%). RRE’s last restaurant job: 805 straps on 3,183 ft of 3/4" EMT (one per 4 ft); its last retail job 764 on 2,142 ft (one per 2.8 ft). The EMT item carries one per 8 ft, so 0.18 a foot more. Recommended: RRE-EMT-STRAP at 0.03 hr each.
Estimated from RRE’s ratio, not measured. Change it if you measured; the line records which.
How to count: About 423 for this job's 2,350 ft of branch EMT.
Footage0 need you · 10 read by the reader
Nothing here needs you: every run has a length the reader measured or read off the drawing.
By symbol29 of 29 shown
165
all marks
hover a group to filter the plan
Counted here, not marked on the drawing
The takeoff counted these from this sheet (circuit labels, the panel schedule) without placing a mark. Marks for drawn symbols come with the symbol-counting step.
