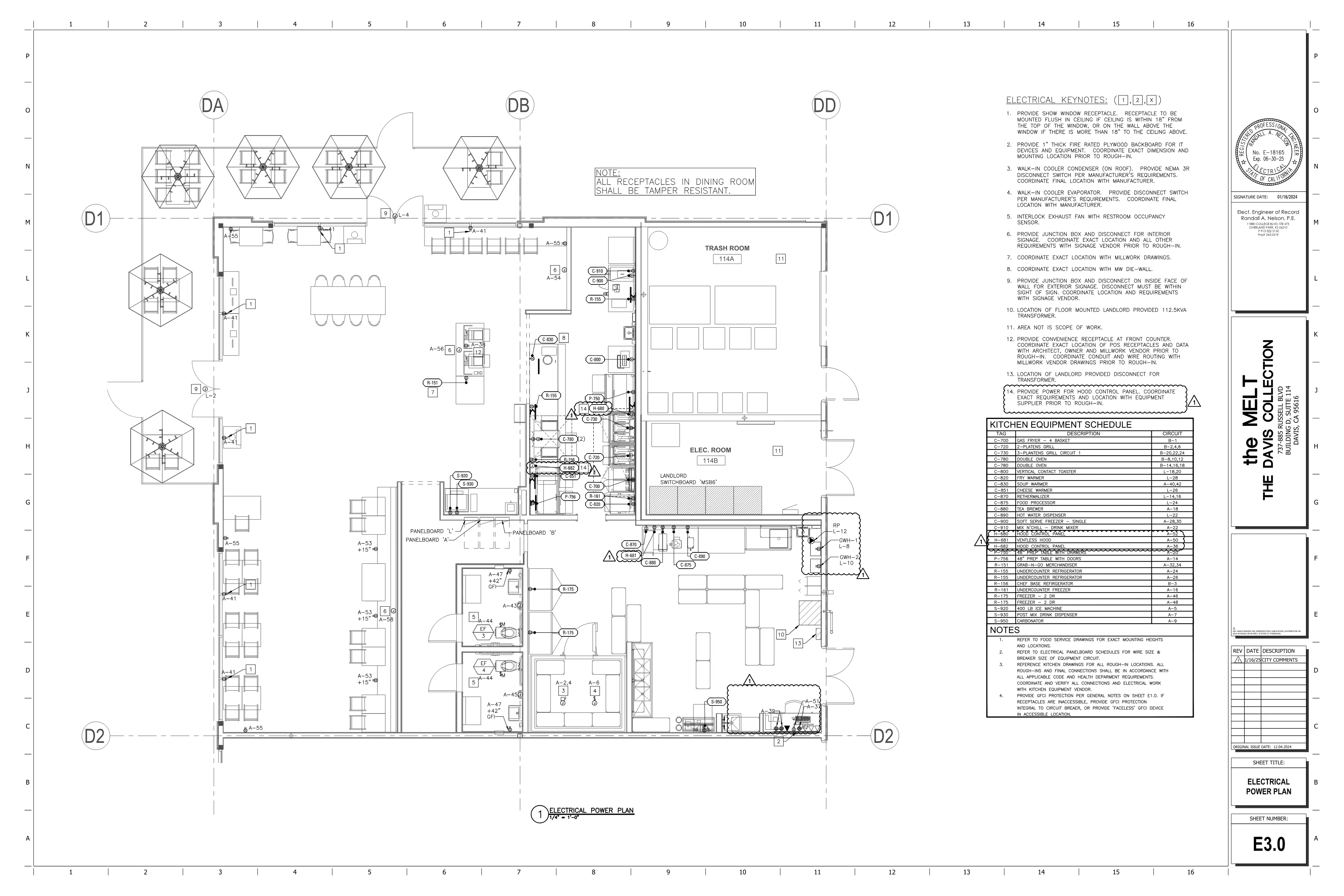

E3.0 — ELECTRICAL POWER PLAN

Read from the drawn geometry, the first rung of the evidence ladder, in 570 ms. Window: symbols between 5 and 80 points across — the size range recorded for drawing E4 on this job, measured off this same drawing. Marks outside it are not looked at.

Names come from: no legend on this sheet, so NECA 100-2006 is what a name rests on. It is the baseline for what a symbol MEANS, never for matching shapes — proportions differ per firm. Confirming a name here is a correction, and corrections are what build the firm's file.

Lettering: glyph coverage 19% — 694 of 3,730 stroked glyphs matched to a letter (alphabet size 91).

Scale is 1/4" = 1'-0" — 18 points per foot. Read off the title block, so measurement off this sheet is available. A later correction flags any measurement taken under the old scale as stale rather than silently recomputing it.

acting aslookadd a markstrike a markPut your name in to mark this sheet up. Looking needs no name.

zoom−100%+fit2×3×sheetonoffcountsonoff59 of 59 marks drawn

Page 39 of Copy of Drawings.pdf, recorded by the read.

Fetching page 39…

0 changes on this sheet, each saved as it was made · not saved as reviewed yetSaveSave & next: E3.1 →

Price from RRE Components1 on this sheet

Pick the RRE item for each count. The Draft Estimate opens when every sheet is answered. Put your name in above to answer these.

Disconnect (size not on the line) — DISCONNECT / MOTOR RATED SWITCH 1P (walk-in cooler evaporator, KN4, A-6)

No RRE Components assembly is a close match. Search the catalogue for one.

Nothing to highlight: not marked on the drawing. Counted from this sheet’s labels or schedule.

Recommended — No ampere rating is on this line. RRE’s last retail job: 4 × 60A 250V HD 3PH N3R fused switches at the rooftop units (and one 30A non-fused). Recommended: 60A 250V HD 3PH N3R F SW -- check each breaker on the panel schedule and change the size where it is not 60A. One answer here prices every line in this question.

Also answers 2 lines of this kind on other sheets: EQUIPMENT CONNECTION, ROOF UNIT (disconnect to unit, 3/4" liquidtight flex whip) · VFD MOTOR LOAD CIRCUIT, HOOD CONTROL PANEL TO FAN DISCONNECT, 3 CONDUCTORS + GROUND 208V 3PH, DEDICATED CONDUIT EACH (EXH-1/EF-1, SUP-3/SF-1)

Use recommended for all 360A 250V HD 3PH N3R F SWrecommendedRRE Components 14006 · $564.67 material · 3.81 hr each

Search

Not in this bid (all 3)

None of these right? Tell the tool what this is Price as labor only Add a new item

Footage0 need you · 2 read by the reader

Nothing here needs you: every run has a length the reader measured or read off the drawing.

Show the 2 the reader gave a length (to check or change)

By symbol4 of 4 shown

showing everything foundshowing named only

59

all marks

hover a group to filter the plan

Counted here, not marked on the drawing

The takeoff counted these from this sheet (circuit labels, the panel schedule) without placing a mark. Marks for drawn symbols come with the symbol-counting step.

1 × DISCONNECT SWITCH 30A 2P NON-FUSED, NEMA 3R, HEAVY DUTY1 × OUTDOOR EQUIPMENT CONNECTION - LIQUIDTIGHT FLEX WHIP 6 FT1 × DISCONNECT SWITCH 30A 1P NON-FUSED (MOTOR RATED), NEMA 13 × DISCONNECT SWITCH 30A 1P NON-FUSED, NEMA 1, SIGN (INTERIOR) WITH J-BOX2 × DISCONNECT SWITCH 30A 1P NON-FUSED, NEMA 1, SIGN (EXTERIOR SIGN, INSIDE FACE OF WALL) WITH J-BOX21 × GFCI DUPLEX RECEPTACLE 20A 125V (kitchen equipment, GN24)2 × GFCI DUPLEX RECEPTACLE 20A 125V +42" (restrooms, 'GFI')8 × SPECIAL PURPOSE RECEPTACLE 208V (kitchen equipment, NEMA per equipment, GFCI per GN24)3 × DOUBLE DUPLEX (QUAD) RECEPTACLE 20A 125V (front counter POS / IT)1 × DUPLEX RECEPTACLE 20A 125V (front counter A-51)0 × DISCONNECT SWITCH 30A 2P NEMA 3R HD (walk-in cooler condenser, KN3, A-2,4)0 × DISCONNECT / MOTOR RATED SWITCH 1P (walk-in cooler evaporator, KN4, A-6)2 × EQUIPMENT CONNECTION exhaust fan EF-3 / EF-4 (A-44)1 × EQUIPMENT CONNECTION recirculation pump RP (L-12)846.3 × 3/4" EMT CONDUIT (power branch, modelled from untagged receptacles)4867.6 × #10 THHN CU WIRE (power branch, modelled)

41

E3.0 · receptacles

E3.0 · receptacles (duplex/GFCI/special/quad)

takeoff: DUPLEX RECEPTACLE 20A 125V TAMPER RESISTANT (dining room / front)

9

E3.0 · junction boxes

E3.0 · junction boxes (equipment/signage/hood)

takeoff: JUNCTION BOX 4" SQ WITH CONNECTION (hard-wired equipment / signage / hood)

7

E3.0 · disconnects (signage, walk-in)

E3.0 · disconnects (signage, walk-in)

takeoff: DISCONNECT SWITCH 30A 2P 240V NEMA 1 HD (signage, KN6/KN9)

2

E3.0 · motor rated switches EF-3/EF-4

E3.0 · motor rated switches EF-3/EF-4

takeoff: MOTOR RATED SWITCH ($M) (restroom exhaust fans EF-3/EF-4, A-44)
