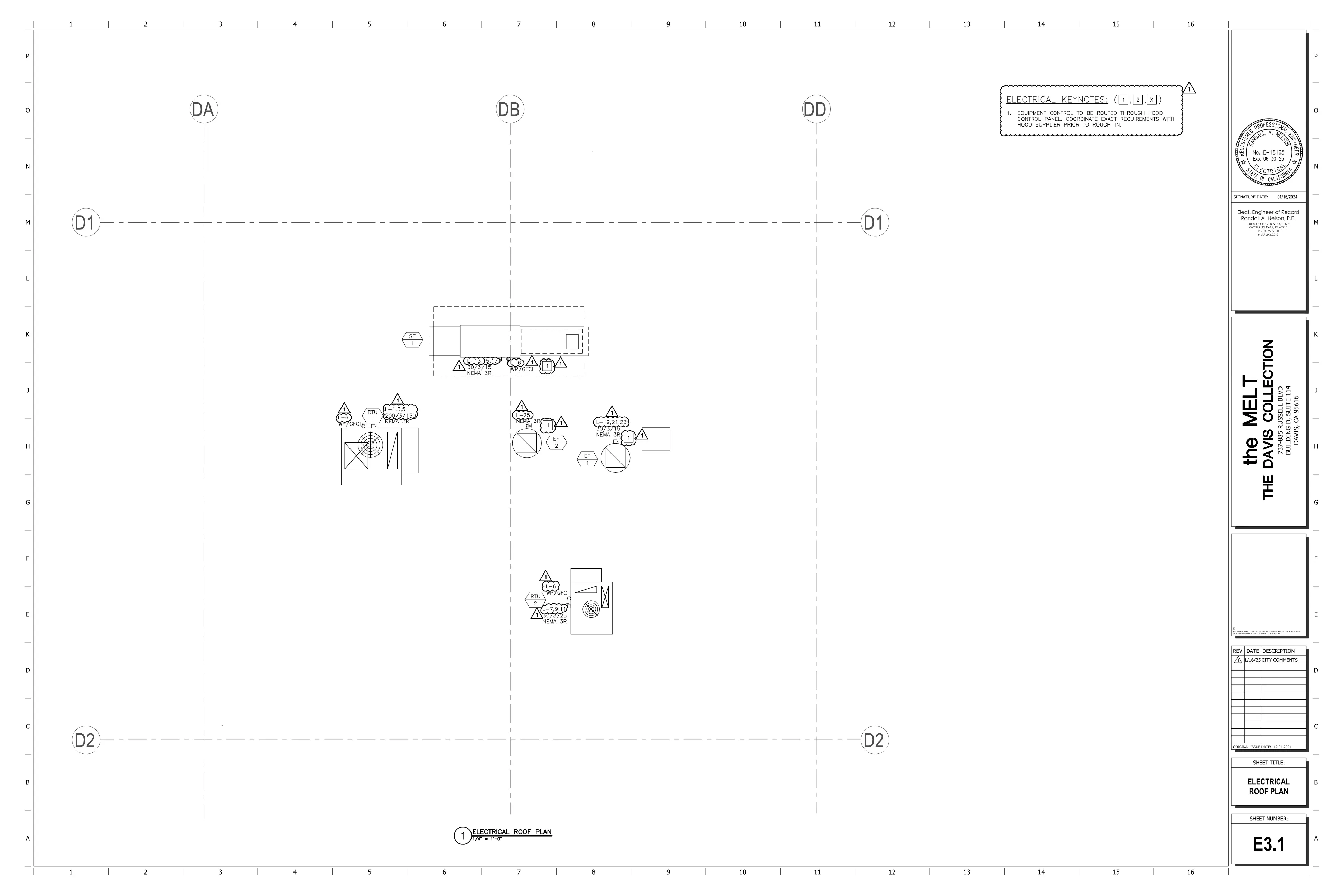

E3.1 — ELECTRICAL ROOF PLAN

Roof plan read from the page image; lettering is drawn as outlines, callouts read by eye at each unit.

Names come from: no legend on this sheet, so NECA 100-2006 is what a name rests on. It is the baseline for what a symbol MEANS, never for matching shapes — proportions differ per firm. Confirming a name here is a correction, and corrections are what build the firm's file.

Scale is 1/4" = 1'-0" — 18 points per foot. Read off the title block, so measurement off this sheet is available. A later correction flags any measurement taken under the old scale as stale rather than silently recomputing it.

acting aslookadd a markstrike a markPut your name in to mark this sheet up. Looking needs no name.

zoom−100%+fit2×3×sheetonoffcountsonoff13 of 13 marks drawn

Page 40 of Copy of Drawings.pdf, recorded by the read.

Fetching page 40…

0 changes on this sheet, each saved as it was made · not saved as reviewed yetSaveSave & next: E3.2 →

Price from RRE Components1 on this sheet

Pick the RRE item for each count. The Draft Estimate opens when every sheet is answered. Put your name in above to answer these.

Disconnect (size not on the line) — EQUIPMENT CONNECTION, ROOF UNIT (disconnect to unit, 3/4" liquidtight flex whip)

No RRE Components assembly is a close match. Search the catalogue for one.

Ringed yellow with “$” on the drawing.

Recommended — No ampere rating is on this line. RRE’s last retail job: 4 × 60A 250V HD 3PH N3R fused switches at the rooftop units (and one 30A non-fused). Recommended: 60A 250V HD 3PH N3R F SW -- check each breaker on the panel schedule and change the size where it is not 60A. One answer here prices every line in this question.

Also answers 2 lines of this kind on other sheets: DISCONNECT / MOTOR RATED SWITCH 1P (walk-in cooler evaporator, KN4, A-6) · VFD MOTOR LOAD CIRCUIT, HOOD CONTROL PANEL TO FAN DISCONNECT, 3 CONDUCTORS + GROUND 208V 3PH, DEDICATED CONDUIT EACH (EXH-1/EF-1, SUP-3/SF-1)

Use recommended for all 360A 250V HD 3PH N3R F SWrecommendedRRE Components 14006 · $564.67 material · 3.81 hr each

Search

Not in this bid (all 3)

None of these right? Tell the tool what this is Price as labor only Add a new item

Footage0 need you · 6 read by the reader

Nothing here needs you: every run has a length the reader measured or read off the drawing.

Show the 6 the reader gave a length (to check or change)

By symbol7 of 7 shown

showing everything foundshowing named only

13

all marks

hover a group to filter the plan

Counted here, not marked on the drawing

The takeoff counted these from this sheet (circuit labels, the panel schedule) without placing a mark. Marks for drawn symbols come with the symbol-counting step.

1 × DISCONNECT SWITCH 200A 3P 240V FUSED, 150A FUSES, NEMA 3R, HEAVY DUTY (RTU-1)1 × OUTDOOR EQUIPMENT CONNECTION - LIQUIDTIGHT FLEX WHIP 6 FT1 × DISCONNECT SWITCH 30A 3P 240V FUSED, 25A FUSES, NEMA 3R, HEAVY DUTY (RTU-2)1 × OUTDOOR EQUIPMENT CONNECTION - LIQUIDTIGHT FLEX WHIP 6 FT1 × DISCONNECT SWITCH 30A 3P 240V FUSED, 15A FUSES, NEMA 3R, HEAVY DUTY (EF-1 (CaptiveAire EXH-1))1 × OUTDOOR EQUIPMENT CONNECTION - LIQUIDTIGHT FLEX WHIP 6 FT1 × DISCONNECT SWITCH 30A 3P 240V FUSED, 15A FUSES, NEMA 3R, HEAVY DUTY (SF-1 (CaptiveAire SUP-3 / MUA fan 3))1 × OUTDOOR EQUIPMENT CONNECTION - LIQUIDTIGHT FLEX WHIP 6 FT1 × MOTOR RATED TOGGLE SWITCH 1P 20A, NEMA 3R WP ENCLOSURE1 × OUTDOOR EQUIPMENT CONNECTION - LIQUIDTIGHT FLEX WHIP 6 FT233 × 3/4" EMT CONDUIT (ROOF EQUIPMENT HOMERUNS)45.9 × 1-1/2" EMT CONDUIT (RTU-1 FEEDER 3#1/0 + #6G)137.7 × #1/0 THHN CU45.9 × #6 THHN CU GROUND232.4 × #10 THHN CU585.8 × #10 THHN CU

5

Roof units · equipment connection

read by eye from the page image

takeoff: EQUIPMENT CONNECTION, ROOF UNIT (disconnect to unit, 3/4" liquidtight flex whip)

3

L-6 · WP/GFCI roof receptacle

read by eye from the page image

takeoff: GFCI DUPLEX RECEPTACLE 20A 125V WR, WEATHERPROOF IN-USE COVER (ROOF SERVICE)

1

SF-1 · disconnect 30/3/15 NEMA 3R

read by eye from the page image

takeoff: SAFETY DISCONNECT 30A 3P 240V FUSIBLE HD NEMA 3R, 15A FUSES (SF-1)

1

RTU-1 · disconnect 200/3/150 NEMA 3R

read by eye from the page image

takeoff: SAFETY DISCONNECT 200A 3P 240V FUSIBLE HD NEMA 3R, 150A FUSES (RTU-1)

1

RTU-2 · disconnect 30/3/25 NEMA 3R

read by eye from the page image

takeoff: SAFETY DISCONNECT 30A 3P 240V FUSIBLE HD NEMA 3R, 25A FUSES (RTU-2)

1

EF-1 · disconnect 30/3/15 NEMA 3R

read by eye from the page image

takeoff: SAFETY DISCONNECT 30A 3P 240V FUSIBLE HD NEMA 3R, 15A FUSES (EF-1)

1

EF-2 · motor switch $M NEMA 3R

read by eye from the page image

takeoff: MOTOR SWITCH, MANUAL MOTOR-RATED 1P 20A, NEMA 3R ENCLOSURE (EF-2, $M)
