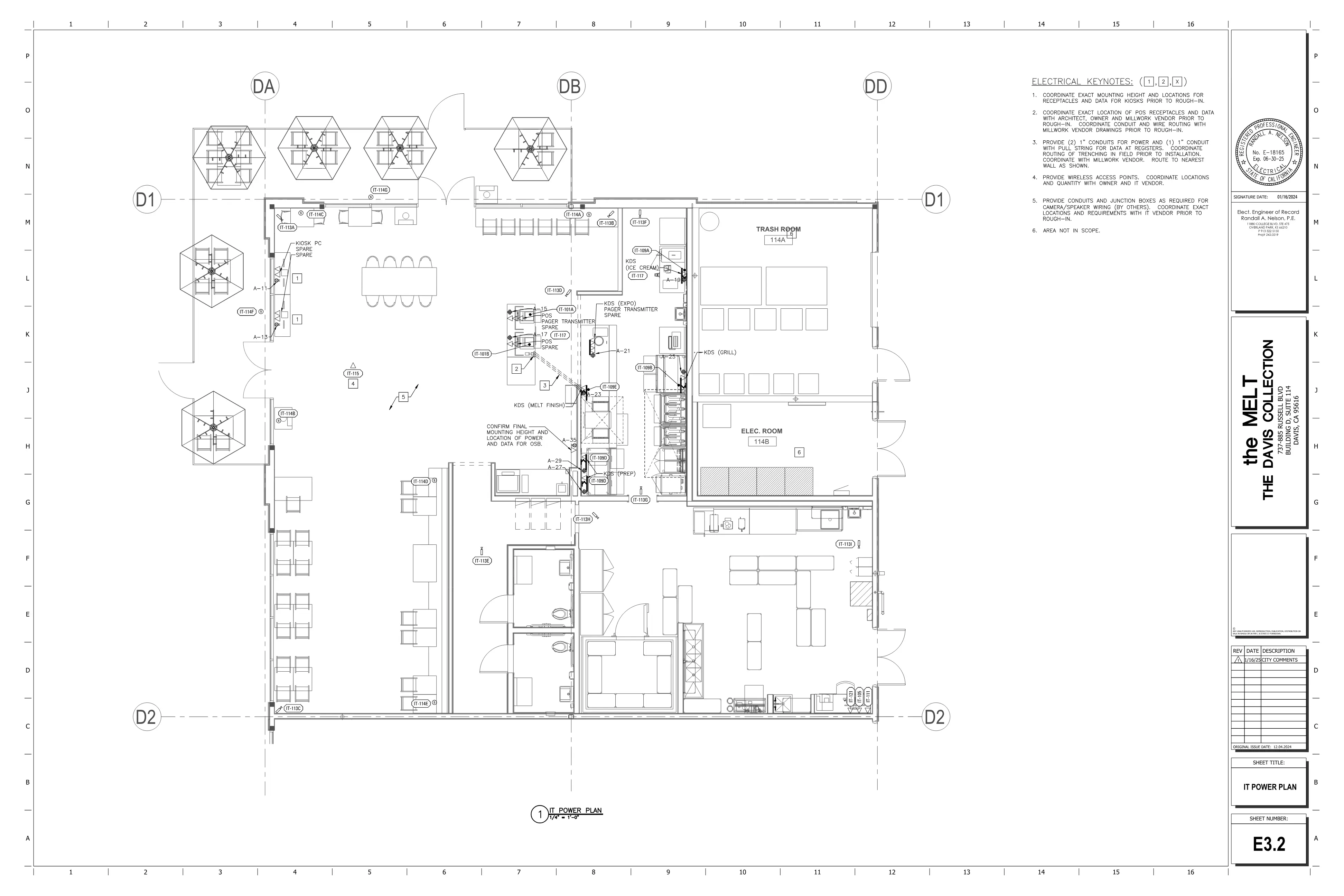

E3.2 — IT POWER PLAN

Vector scan + 600-dpi crops; A-xx tags are outlined lettering, IT-xxx tags read from the text layer. Receptacle positions placed by hand from crops (scanner split quad symbols into parts).

Names come from: no legend on this sheet, so NECA 100-2006 is what a name rests on. It is the baseline for what a symbol MEANS, never for matching shapes — proportions differ per firm. Confirming a name here is a correction, and corrections are what build the firm's file.

Scale is 1/4" = 1'-0" — 18 points per foot. Read off the title block, so measurement off this sheet is available. A later correction flags any measurement taken under the old scale as stale rather than silently recomputing it.

acting aslookadd a markstrike a markPut your name in to mark this sheet up. Looking needs no name.

zoom−100%+fit2×3×sheetonoffcountsonoff43 of 43 marks drawn

Page 41 of Copy of Drawings.pdf, recorded by the read.

Fetching page 41…

0 changes on this sheet, each saved as it was made · not saved as reviewed yetSaveSave & next: E4.0 →

Price from RRE Components1 on this sheet

Pick the RRE item for each count. The Draft Estimate opens when every sheet is answered. Put your name in above to answer these.

Low-voltage / device backbox — PLYWOOD BACKBOARD 4' x 8' x 3/4" FIRE-RATED, PAINTED, AT TELECOM / LV LOCATION

No RRE Components assembly is a close match. Search the catalogue for one.

Nothing to highlight: not marked on the drawing. Counted from this sheet’s labels or schedule.

Recommended — RRE’s lead estimator’s takeoff sheets: every low-voltage backbox bought as a BACK BOX -- a 4/O 2-1/8" box, 2-gang 2" ring and blank cover -- 75 on its last retail job, 42 on its last restaurant job, with 12 ft of 3/4" EMT each. Recommended: BACK BOX. Where the EC also sets the jack, it is a device box instead.

Use recommendedBACK BOXrecommendedRRE Components 31712 · $30.68 material · 0.26 hr each

Search

Not in this bid

None of these right? Tell the tool what this is Price as labor only Add a new item

Footage0 need you · 5 read by the reader

Nothing here needs you: every run has a length the reader measured or read off the drawing.

Show the 5 the reader gave a length (to check or change)

By symbol8 of 8 shown

showing everything foundshowing named only

43

all marks

hover a group to filter the plan

Counted here, not marked on the drawing

The takeoff counted these from this sheet (circuit labels, the panel schedule) without placing a mark. Marks for drawn symbols come with the symbol-counting step.

1288.3 × #10 THHN CU WIRE (branch, IT receptacle circuits)17.7 × 1" PVC SCH 40 CONDUIT IN SLAB TRENCH w/ PULL STRING (KN3: 2 power + 1 data)280.4 × PULL STRING (empty LV conduit, E1.0 GN10)14 × LV DATA BACKBOX 4" SQ DEEP w/ 1-GANG MUD RING (rough-in only, cable by LVC)1 × PLYWOOD BACKBOARD 4' x 8' x 3/4" FIRE-RATED, PAINTED, AT TELECOM / LV LOCATION

14

KDS prep IT-109D · E3.2 · LV data backbox

triangle · 8 pt

takeoff: 3/4" EMT CONDUIT STUB TO ACCESSIBLE CEILING (low-voltage rough-in, empty w/ pull string)

9

IT-113A · E3.2 · camera backbox

camera · 10 pt

takeoff: CAMERA BACKBOX 4" SQ (rough-in only, camera + cable by others)

7

IT-114A · E3.2 · speaker backbox

circle · 6 pt

takeoff: SPEAKER BACKBOX 4" SQ (rough-in only, speaker + cable by others)

6

A-19 · E3.2 · double duplex GFCI receptacle

symbol · 10 pt

takeoff: DOUBLE DUPLEX GFCI RECEPTACLE 20A 125V NEMA 5-20R (2 GFCI DUPLEX, 2-GANG) STAINLESS PLATE

3

A-11 · E3.2 · duplex receptacle TR (kiosk, OSB)

symbol · 10 pt

takeoff: DUPLEX RECEPTACLE 20A 125V NEMA 5-20R TAMPER RESISTANT

2

A-15 · E3.2 · double duplex receptacle TR (POS)

symbol · 10 pt

takeoff: DOUBLE DUPLEX (QUAD) RECEPTACLE 20A 125V NEMA 5-20R TAMPER RESISTANT, 2-GANG

1

IT-115 WAP (KN4) · E3.2 · WAP backbox

triangle · 8 pt

takeoff: WAP BACKBOX 4" SQ (ceiling, rough-in only)

1

E3.2 · panel A homerun origin

panel · 20 pt

takeoff: 3/4" EMT CONDUIT (branch, IT receptacle circuits)
