Screened, not decidedkelchlin has answered some of the job type criteria. No bid decision has been recorded.Restaurant · TI · $50,000 – $100,000Step 2 →
Lettering drawn as outlines (1,230 text chars are grid labels only); schedules and one-line read from the 300-dpi page image. One-line NOT TO SCALE.
Names come from: no legend on this sheet, so NECA 100-2006 is what a name rests on. It is the baseline for what a symbol MEANS, never for matching shapes — proportions differ per firm. Confirming a name here is a correction, and corrections are what build the firm's file.
Scale is UNSET. Nothing on this sheet has been measured. The reader declined to infer a scale rather than guess one, so there is no raceway and no branch wire off this sheet — together the largest block of material on a job of this kind. Set it from the title block and measurement becomes available.
Put your name in to mark this sheet up. Looking needs no name.
zoom100%sheetcounts13 of 13 marks drawn

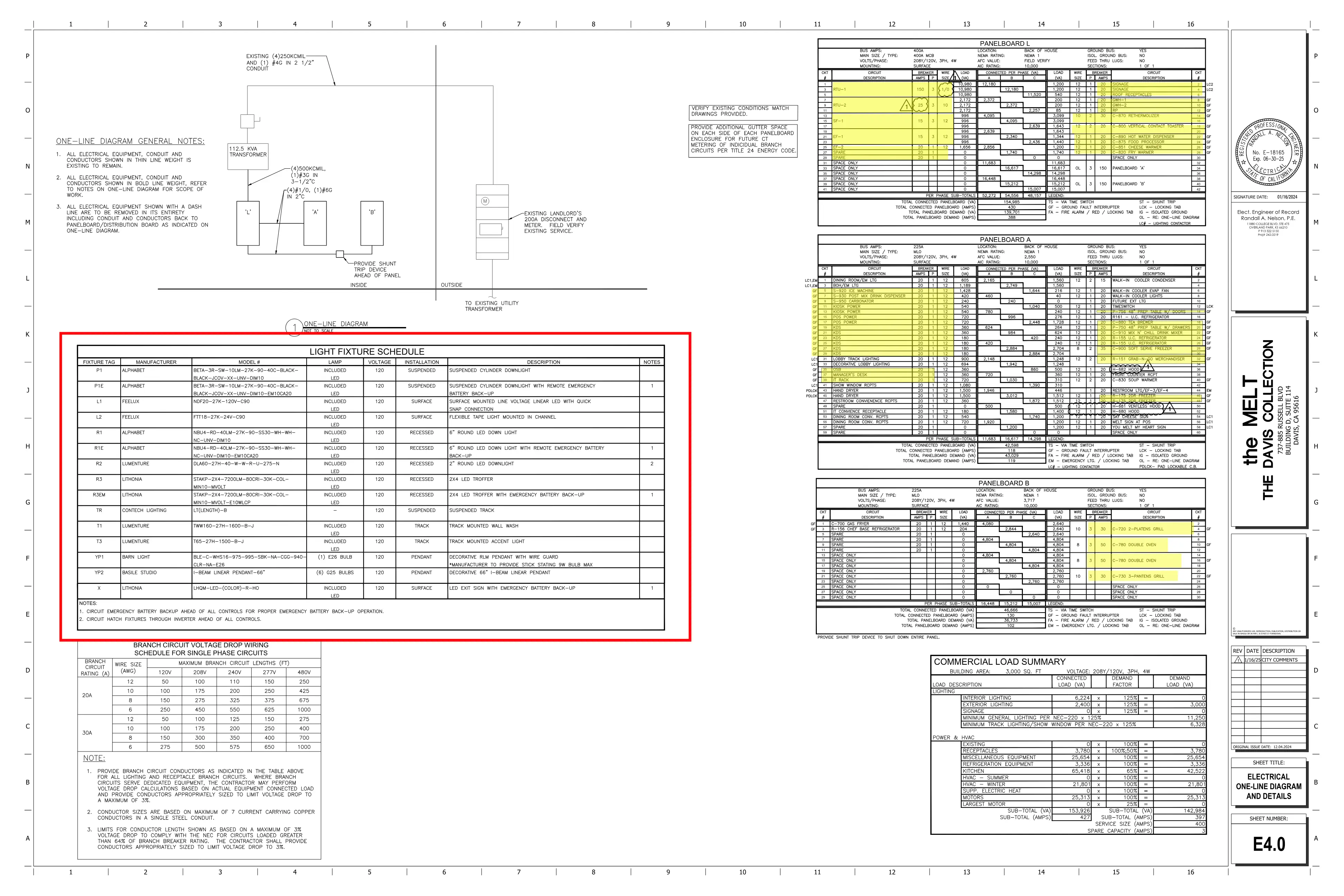

Page 42 of Copy of Drawings.pdf, recorded by the read.
Fetching page 42…
0 changes on this sheet, each saved as it was made · not saved as reviewed yet
Price from RRE Components3 on this sheet
Pick the RRE item for each count. The Draft Estimate opens when every sheet is answered. Put your name in above to answer these.
Circuit breaker (terminations counted) — 24 lines: CIRCUIT BREAKER 15A 2P 208Y/120V BOLT-ON, PANEL A · CIRCUIT BREAKER 20A 1P 208Y/120V BOLT-ON, PANEL A · CIRCUIT BREAKER 20A 2P 208Y/120V BOLT-ON, PANEL A · CIRCUIT BREAKER 35A 2P 208Y/120V BOLT-ON, PANEL A · CIRCUIT BREAKER 20A 1P 208Y/120V BOLT-ON, PANEL B · CIRCUIT BREAKER 30A 3P 208Y/120V BOLT-ON, PANEL B · CIRCUIT BREAKER 50A 3P 208Y/120V BOLT-ON, PANEL B · CIRCUIT BREAKER 15A 3P 208Y/120V BOLT-ON, PANEL L · CIRCUIT BREAKER 20A 1P 208Y/120V BOLT-ON, PANEL L · CIRCUIT BREAKER 20A 2P 208Y/120V BOLT-ON, PANEL L · CIRCUIT BREAKER 25A 3P 208Y/120V BOLT-ON, PANEL L · CIRCUIT BREAKER 30A 2P 208Y/120V BOLT-ON, PANEL L · CIRCUIT BREAKER 150A 3P 208Y/120V BOLT-ON, PANEL L · GFCI CIRCUIT BREAKER 20A 1P (GF), PANEL A · GFCI CIRCUIT BREAKER 20A 2P (GF), PANEL A · GFCI CIRCUIT BREAKER 35A 2P (GF), PANEL A · GFCI CIRCUIT BREAKER 20A 1P (GF), PANEL L · GFCI CIRCUIT BREAKER 20A 2P (GF), PANEL L · GFCI CIRCUIT BREAKER 30A 2P (GF), PANEL L · GFCI CIRCUIT BREAKER 20A 1P (GF), PANEL B · GFCI CIRCUIT BREAKER 30A 3P (GF), PANEL B · GFCI CIRCUIT BREAKER 50A 3P (GF), PANEL B · PANELBOARD 'L' 400A BUS, 400A MAIN CIRCUIT BREAKER, 208Y/120V 3PH 4W, 42 CKT, NEMA 1 SURFACE, 10kAIC, W/ ADDITIONAL GUTTER SPACE EACH SIDE FOR FUTURE CT METERING · SHUNT TRIP DEVICE / ENCLOSED SHUNT-TRIP BREAKER 150A 3P 208V, NEMA 1, AHEAD OF PANEL 'B' (HOOD FIRE SUPPRESSION SHUTDOWN)
No RRE Components assembly is a close match. Search the catalogue for one.
Ringed yellow with “$” on the drawing.
Recommended: not in this bid — The terminations line on this takeoff already counts these circuits, and RRE’s last retail job bought no breakers for circuits in its existing panels. Recommended: Not in this bid. Where the EC furnishes new breakers, search for the breaker. One answer here prices every line in this question.
Also answers 1 line of this kind on other sheets: SHUNT TRIP SIGNAL WIRING, HOOD CONTROL PANEL ST/N1 TO SHUNT TRIP BREAKER COIL A1/A2, 120VAC, 2 WIRES
recommended
None of these right?
Run (nearest conduit size) — FEEDER (4)500KCMIL CU THHN + (1)#3G IN 3-1/2" EMT
No RRE Components assembly is a close match. Search the catalogue for one.
Nothing to highlight: not marked on the drawing. Counted from this sheet’s labels or schedule.
Recommended — The callout reads 4 × #500 + #3 ground in 3 1/2" EMT. RRE Components carries that run in 3" EMT, not 3 1/2". Recommended: 4 #500 & 1 #3 3" EMT D/C; check the conduit size, or search for the 3 1/2" EMT and the wire separately.
4 #500 & 1 #3 3" EMT D/CrecommendedRRE Components 1114 · $51.66 material · 0.35 hr each
None of these right?
Run (nearest conduit size) — 2 lines: FEEDER (4)#1/0 CU THHN + (1)#6G IN 2" EMT
Unsure: "#1/0 THHN CU STRANDED - PULL ONLY (per ft)" (0.519) and "#1 THHN CU STRANDED - PULL ONLY (per ft)" (0.468) are too close, or neither is strong.
Nothing to highlight: not marked on the drawing. Counted from this sheet’s labels or schedule.
Recommended — The callout reads 4 × #1/0 + #6 ground in 2" EMT. RRE Components carries that run in 1 1/2" EMT, not 2". Recommended: 4#1/0&1#6 1 1/2" EMT D/S B/; check the conduit size, or search for the 2" EMT and the wire separately. One answer here prices every line in this question.
4#1/0&1#6 1 1/2" EMT D/S B/recommendedRRE Components 18535 · $14.01 material · 0.20 hr each
#1/0 THHN CU STRANDED - PULL ONLY (per ft)RRE-THHN-1-0 · $2.06 material · 0.01 hr each
#1 THHN CU STRANDED - PULL ONLY (per ft)RRE-THHN-1 · $1.68 material · 0.01 hr each
None of these right?
Footage6 need you · 3 read by the reader
Put your name in above to answer these.
0Is this footage right?
3-1/2" EMT CONDUIT (FEEDER: TRANSFORMER TO PANEL L)
Landlord 112.5 kVA transformer to panel L
The reader measured 65 ft along the dashed path (raw, before waste); the line carries 0 ft.
ft
· Strike it: ·
0Is this footage right?
500 KCMIL CU THHN (FEEDER, 4 PER RUN)
Transformer to panel L, (4)500kcmil x 65 ft
The reader left this at 0 ft, but its own note gives the length: “Transformer to panel L, (4)500kcmil x 65 ft” — 4 conductors × 65 ft = 260 ft. It is filled in below: confirm it, or change it.
ft
· Strike it: ·
0Is this footage right?
#3 CU THHN GROUND (FEEDER)
Transformer to panel L, (1)#3G x 65 ft
The reader left this at 0 ft, but its own note gives the length: “Transformer to panel L, (1)#3G x 65 ft” — 65 ft. It is filled in below: confirm it, or change it.
ft
· Strike it: ·
0Is this footage right?
2" EMT CONDUIT (FEEDERS: PANEL L TO PANELS A AND B)
L to A 10 ft + L to B (via shunt trip) 10 ft
The reader left this at 0 ft, but its own note gives the length: “L to A 10 ft + L to B (via shunt trip) 10 ft” — 20 ft. It is filled in below: confirm it, or change it.
ft
· Strike it: ·
0Is this footage right?
#1/0 CU THHN (FEEDER, 4 PER RUN)
(4)#1/0 x (10+10) ft, L to A and L to B
The reader left this at 0 ft, but its own note gives the length: “(4)#1/0 x (10+10) ft, L to A and L to B” — 4 conductors × 20 ft = 80 ft. It is filled in below: confirm it, or change it.
ft
· Strike it: ·
0Is this footage right?
#6 CU THHN GROUND (FEEDER)
(1)#6G x (10+10) ft
The reader left this at 0 ft, but its own note gives the length: “(1)#6G x (10+10) ft” — 20 ft. It is filled in below: confirm it, or change it.
ft
· Strike it: ·
By symbol8 of 8 shown
13
all marks
hover a group to filter the plan
Counted here, not marked on the drawing
The takeoff counted these from this sheet (circuit labels, the panel schedule) without placing a mark. Marks for drawn symbols come with the symbol-counting step.
