Screened, not decidedkelchlin has answered some of the job type criteria. No bid decision has been recorded.Restaurant · TI · $50,000 – $100,000Step 2 →

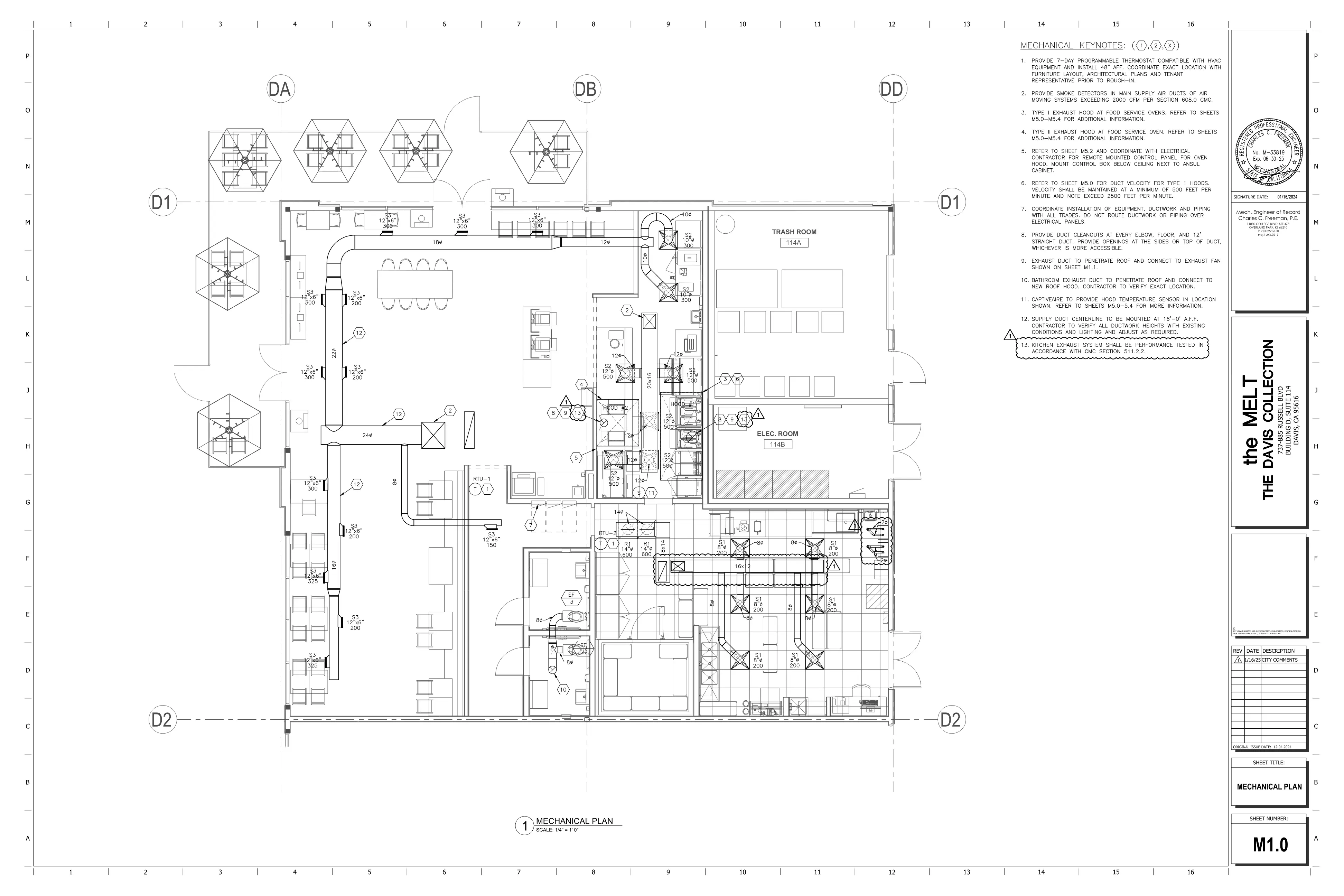

Plan tags and keynotes are outlined text; read visually from 100 and 200 dpi renders. Marks at the EC-relevant symbols only: duct smoke detectors (keynote 2), thermostats (keynote 1), hood temperature sensor (keynote 11).
Names come from: no legend on this sheet, so NECA 100-2006 is what a name rests on. It is the baseline for what a symbol MEANS, never for matching shapes — proportions differ per firm. Confirming a name here is a correction, and corrections are what build the firm's file.
Scale is 1/4" = 1' 0" — 18 points per foot. Read off the title block, so measurement off this sheet is available. A later correction flags any measurement taken under the old scale as stale rather than silently recomputing it.
18 pt/ft
Put your name in to mark this sheet up. Looking needs no name.
zoom100%sheetcounts5 of 5 marks drawn
Page 25 of Copy of Drawings.pdf, recorded by the read.
Fetching page 25…
0 changes on this sheet, each saved as it was made · not saved as reviewed yet
Price from RRE Components2 on this sheet
Pick the RRE item for each count. The Draft Estimate opens when every sheet is answered. Put your name in above to answer these.
Duct smoke detector — 2 lines: DUCT SMOKE DETECTOR, DUCT-MOUNTED W/ SAMPLING TUBE AND HOUSING, MAKE-UP AIR (SF-1 / CAPTIVEAIRE SUP-3) SUPPLY DUCT (EC FURNISH & WIRE, MC INSTALL IN DUCT) · DUCT SMOKE DETECTOR REMOTE ALARM INDICATOR / KEY TEST STATION, 1-GANG, W/ 4" SQ BOX + 3/4" EMT STUB 12 FT, FOR MAKE-UP AIR DUCT DETECTOR
No RRE Components assembly is a close match. Search the catalogue for one.
Ringed yellow with “$” on the drawing.
Recommended: not in this bid — Not in this bid: RRE carried no duct detectors, test stations or their interlock wiring on its last three estimates (the mechanical contractor installs them and the fire alarm contractor wires them). Price them only where the mechanical notes put furnish-and-wire on the EC and the bid carries it. One answer here prices every line in this question.
Also answers 2 lines of this kind on other sheets: DUCT SMOKE DETECTOR, DUCT-MOUNTED W/ SAMPLING TUBE AND HOUSING (EC FURNISH & WIRE, MC INSTALL IN DUCT) · DUCT SMOKE DETECTOR REMOTE ALARM INDICATOR / KEY TEST STATION, 1-GANG, W/ 4" SQ BOX + 3/4" EMT STUB 12 FT
recommended
None of these right?
Run in feet (no item read) — THERMOSTAT CONTROL CABLE, 18 AWG 8-CONDUCTOR (18/8) CL2, THERMOSTAT TO ROOFTOP UNIT (RTU-1, RTU-2), IN CONDUIT
No RRE Components assembly is a close match. Search the catalogue for one.
Nothing to highlight: not marked on the drawing. Counted from this sheet’s labels or schedule.
Recommended: not in this bid — This line is measured in feet, and no conduit, wire or cable item could be read off its name. Choose the material it is, by the foot -- never an hour item, which would price each foot as an hour.
recommended
None of these right?
Footage0 need you · 2 read by the reader
Nothing here needs you: every run has a length the reader measured or read off the drawing.
By symbol4 of 4 shown
5
all marks
hover a group to filter the plan
Counted here, not marked on the drawing
The takeoff counted these from this sheet (circuit labels, the panel schedule) without placing a mark. Marks for drawn symbols come with the symbol-counting step.
